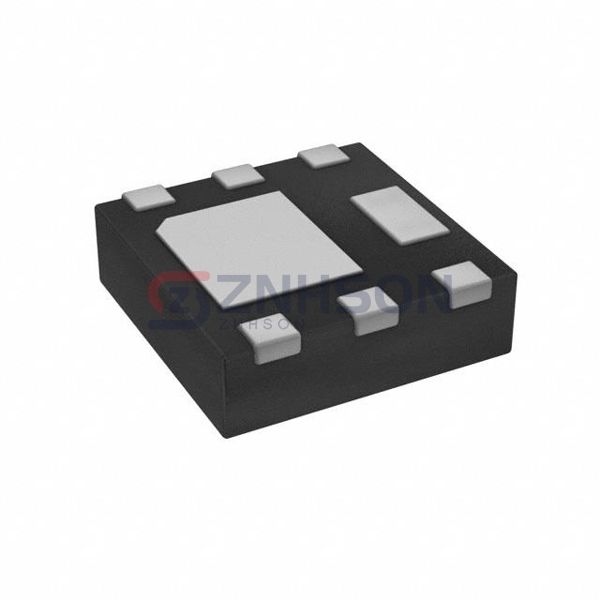

DMP2023UFDF-7
Diodes Incorporated
Diodes Incorporated
MOSFET P-CH 20V 7.6A 6UDFN
$0.74
Available to order
Reference Price (USD)
1+
$0.74000
500+
$0.7326
1000+
$0.7252
1500+
$0.7178
2000+
$0.7104
2500+
$0.703
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose DMP2023UFDF-7 by Diodes Incorporated. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with DMP2023UFDF-7 inquire now for more details!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 7.6A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 27mOhm @ 7A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 27 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 1837 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 730mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: U-DFN2020-6 (Type F)
- Package / Case: 6-UDFN Exposed Pad
Related Products
Diodes Incorporated
DMN21D2UFB-7
onsemi
FDMC86520L
onsemi
FQU17P06TU
IXYS
IXTP14N60X2
Fairchild Semiconductor
FQD1N60TM
onsemi
FDMA530PZ
Alpha & Omega Semiconductor Inc.
AON7528
Micro Commercial Co
SI2301A-TP

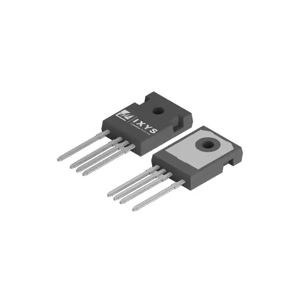

Littelfuse Inc.
