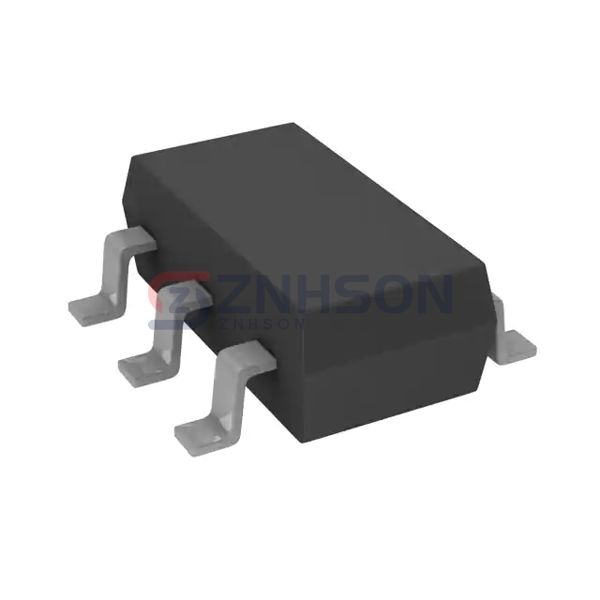

DMP2109UVT-7
Diodes Incorporated
Diodes Incorporated
MOSFET P-CH 20V 3.7A TSOT26
$0.11
Available to order
Reference Price (USD)
1+
$0.10944
500+
$0.1083456
1000+
$0.1072512
1500+
$0.1061568
2000+
$0.1050624
2500+
$0.103968
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with DMP2109UVT-7 by Diodes Incorporated, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, DMP2109UVT-7 ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 3.7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 80mOhm @ 2.8A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6 nC @ 4.5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 443 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.2W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TSOT-26
- Package / Case: SOT-23-6 Thin, TSOT-23-6
Related Products
Infineon Technologies
IPD60R210PFD7SAUMA1
Infineon Technologies
IPB052N04NG
Diodes Incorporated
DMTH4004SK3-13
Nexperia USA Inc.
BUK768R3-60E,118
Toshiba Semiconductor and Storage
TJ40S04M3L,LXHQ
IXYS

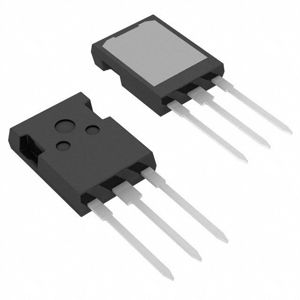

IXFX320N17T2
