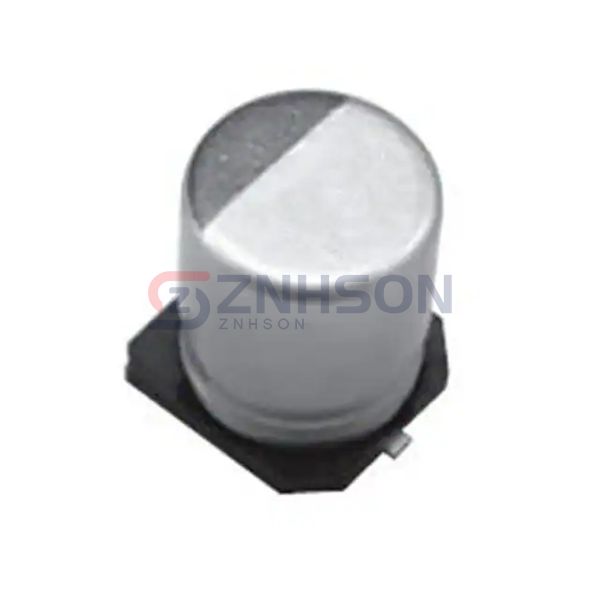

EMXB250ARA102MLH0S
United Chemi-Con
United Chemi-Con
CAP ALUM 1000UF 20% 25V SMD
$1.82
Available to order
Reference Price (USD)
1+
$1.82000
500+
$1.8018
1000+
$1.7836
1500+
$1.7654
2000+
$1.7472
2500+
$1.729
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior performance with EMXB250ARA102MLH0S Aluminum Electrolytic Capacitors from United Chemi-Con. These capacitors are designed to meet the highest industry standards, offering low leakage current, high voltage ratings, and excellent thermal stability. Ideal for medical devices, renewable energy systems, and military applications, EMXB250ARA102MLH0S provides the reliability you need. Don't hesitate contact us now for more details and pricing options.
Specifications
- Product Status: Active
- Capacitance: 1000 µF
- Tolerance: ±20%
- Voltage - Rated: 25 V
- ESR (Equivalent Series Resistance): 100mOhm @ 100kHz
- Lifetime @ Temp.: 1000 Hrs @ 150°C
- Operating Temperature: -40°C ~ 150°C
- Polarization: Polar
- Ratings: AEC-Q200
- Applications: Automotive
- Ripple Current @ Low Frequency: 672 mA @ 120 Hz
- Ripple Current @ High Frequency: 1.12 A @ 100 kHz
- Impedance: -
- Lead Spacing: -
- Size / Dimension: 0.630" Dia (16.00mm)
- Height - Seated (Max): 0.669" (17.00mm)
- Surface Mount Land Size: 0.669" L x 0.669" W (17.00mm x 17.00mm)
- Mounting Type: Surface Mount
- Package / Case: Radial, Can - SMD
