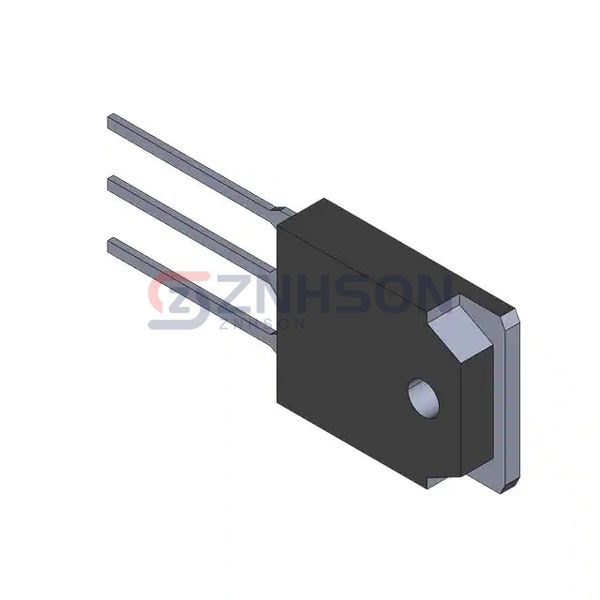

FGA20S120M
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 40A, 1200V, N-CHANNEL
$2.07
Available to order
Reference Price (USD)
1+
$2.07000
500+
$2.0493
1000+
$2.0286
1500+
$2.0079
2000+
$1.9872
2500+
$1.9665
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose FGA20S120M Single IGBTs by Fairchild Semiconductor for superior power handling in demanding environments. From railway systems to industrial drives, these transistors excel with features like avalanche ruggedness and integrated diodes. Their modular design simplifies installation and maintenance. Fairchild Semiconductor's reputation for quality makes FGA20S120M a smart investment. Email us now for datasheets and volume discounts!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 1.85V @ 15V, 20A
- Power - Max: 348 W
- Switching Energy: -
- Input Type: Standard
- Gate Charge: 208 nC
- Td (on/off) @ 25°C: -
- Test Condition: -
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
