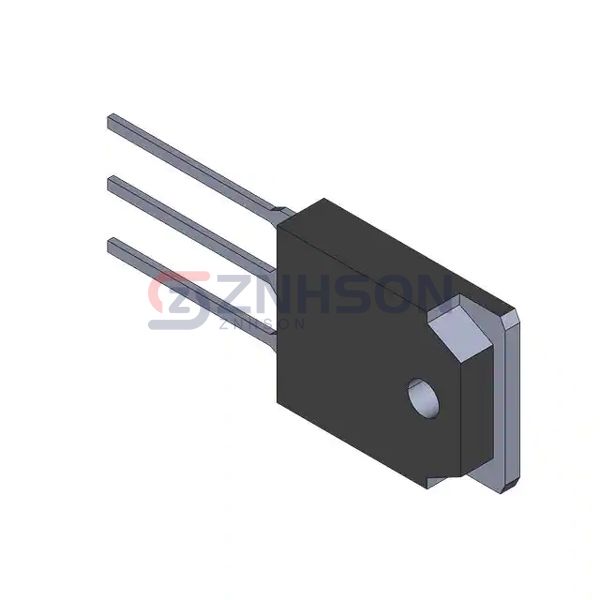

FGA20S140P
Fairchild Semiconductor
Fairchild Semiconductor
INSULATED GATE BIPOLAR TRANSISTO
$1.48
Available to order
Reference Price (USD)
1+
$3.02000
10+
$2.73000
450+
$2.14347
900+
$1.93308
1,350+
$1.64517
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your power electronics with FGA20S140P Single IGBTs by Fairchild Semiconductor, engineered for precision and durability. Perfect for inverters, welding equipment, and automotive applications, these transistors provide fast switching speeds and excellent thermal stability. Key features include high voltage tolerance, low power loss, and compact design. Trust Fairchild Semiconductor for top-quality components that meet global standards. Request a quote now to learn more about how FGA20S140P can enhance your projects.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1400 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 20A
- Power - Max: 272 W
- Switching Energy: -
- Input Type: Standard
- Gate Charge: 203.5 nC
- Td (on/off) @ 25°C: -
- Test Condition: -
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3PN
