FOD8342TV
onsemi
onsemi
OPTOISO 5KV 1CH GATE DRIVER 6SOP
$1.09
Available to order
Reference Price (USD)
1+
$1.09475
500+
$1.0838025
1000+
$1.072855
1500+
$1.0619075
2000+
$1.05096
2500+
$1.0400125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The onsemi FOD8342TV Gate Driver Isolators provide reliable and efficient isolation for advanced power electronics. With features like low jitter, high CMTI, and extended lifecycle, they are ideal for industrial robots, energy storage systems, and consumer electronics. Unlock superior performance get in touch for expert advice!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 20kV/µs
- Propagation Delay tpLH / tpHL (Max): 210ns, 210ns
- Pulse Width Distortion (Max): 65ns
- Rise / Fall Time (Typ): 38ns, 24ns
- Current - Output High, Low: 2.5A, 2.5A
- Current - Peak Output: 3A
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 10V ~ 30V
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.268", 6.80mm Width)
- Supplier Device Package: 6-SOP
- Approval Agency: UL
Related Products
Skyworks Solutions Inc.
SI8234BC-D-IS1
Analog Devices Inc./Maxim Integrated
MAX22701DASA+
Analog Devices Inc.
ADUM7223BCCZ-RL7
Broadcom Limited
HCPL-5120
Toshiba Semiconductor and Storage
TLP152(TPL,E
Toshiba Semiconductor and Storage

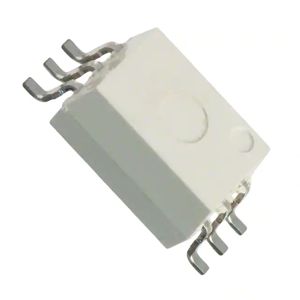

TLP700H(F)
