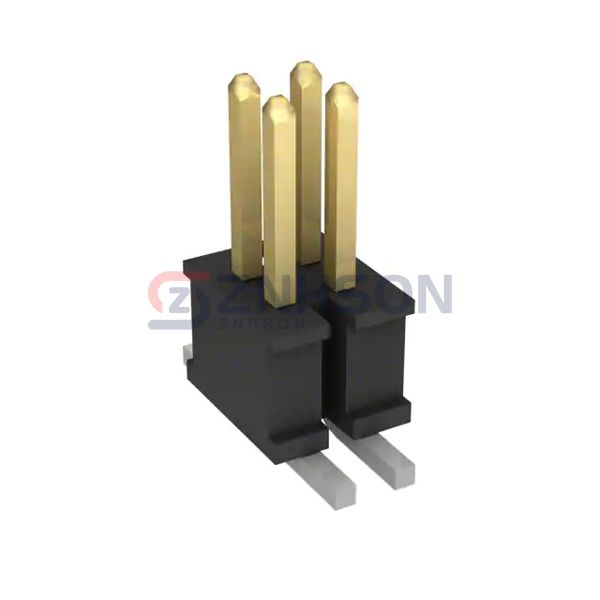

FTSH-102-05-S-DV
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 4POS 1.27MM
$2.07
Available to order
Reference Price (USD)
1+
$1.27000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FTSH-102-05-S-DV Samtec Inc. Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Samtec Inc. difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.170" (4.32mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.099" (2.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
FTE-150-03-G-DH
Sullins Connector Solutions

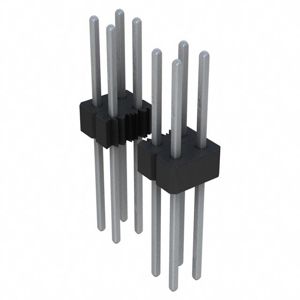

PEC16DFDN
Amphenol ICC (FCI)
77311-102S21LF
Samtec Inc.

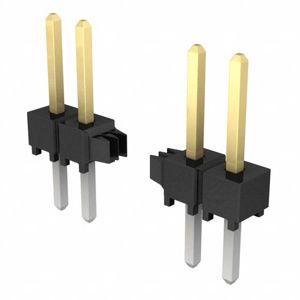

TSW-107-24-F-S
Hirose Electric Co Ltd

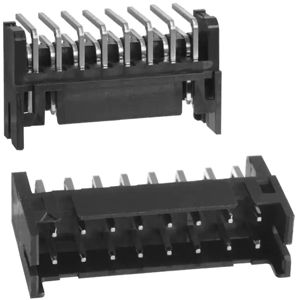

DF11-16DP-2DS(24)
Mill-Max Manufacturing Corp.

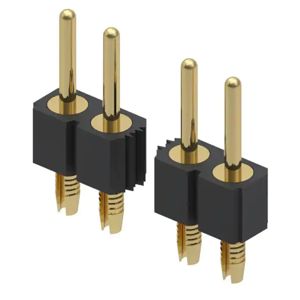

800-10-019-61-001000
Preci-Dip

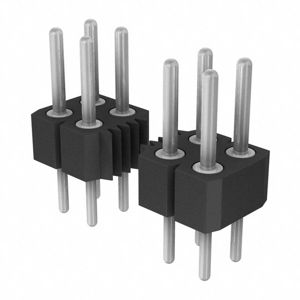

802-80-028-10-001101
Amphenol ICC (FCI)

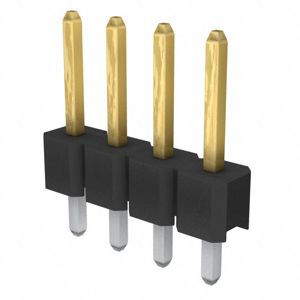

861400041YO2090LF
