G125-MS13405L3P
Harwin Inc.
Harwin Inc.

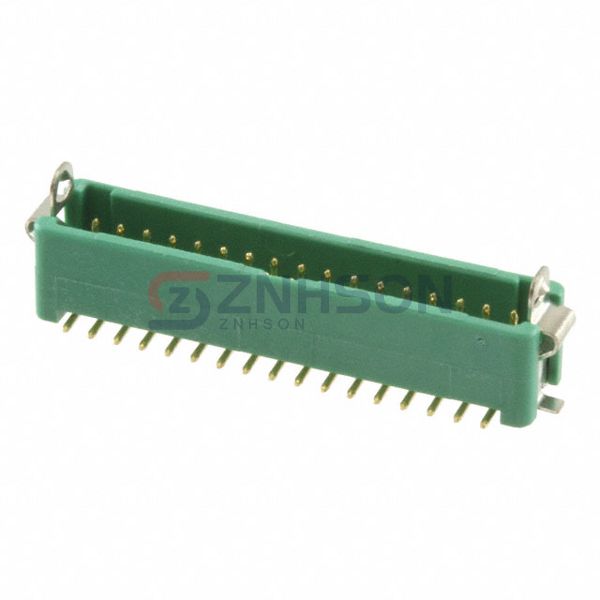

CONN HEADER SMD 34POS 1.25MM
$16.45
Available to order
Reference Price (USD)
1+
$12.92000
10+
$11.74400
100+
$9.98240
500+
$8.51440
1,000+
$7.80976
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The G125-MS13405L3P Harwin Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.049" (1.25mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.193" (4.90mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features: Pick and Place, Solder Retention
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): 2A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-108-01-F-DH
HARTING
09185245923
TE Connectivity AMP Connectors
1-102202-7
Samtec Inc.
TFM-125-22-S-D-A-K
Samtec Inc.
TMM-119-06-T-D
Samtec Inc.
TSM-106-03-G-DV
Amphenol ICC (FCI)
77311-818-27LF
Amphenol ICC (Commercial Products)

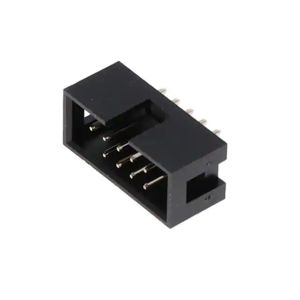

G821EU210AAL10Y
