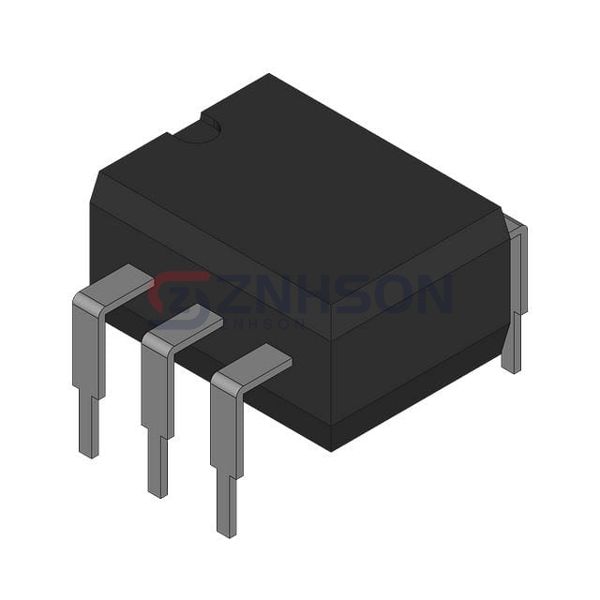

H11G1300W
Fairchild Semiconductor
Fairchild Semiconductor
DARLINGTON OUTPUT OPTOCOUPLER
$0.29
Available to order
Reference Price (USD)
1+
$0.29000
500+
$0.2871
1000+
$0.2842
1500+
$0.2813
2000+
$0.2784
2500+
$0.2755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior signal isolation with Fairchild Semiconductor's H11G1300W Optoisolators - Transistor, Photovoltaic Output. These components are ideal for data acquisition, process control, and safety systems, offering fast response times and high insulation resistance. With Fairchild Semiconductor's commitment to innovation, you can expect cutting-edge solutions for your technical challenges. Reach out now to request a quote and elevate your designs!
Specifications
- Product Status: Obsolete
- Number of Channels: 1
- Voltage - Isolation: 5300Vrms
- Current Transfer Ratio (Min): 1000% @ 10mA
- Current Transfer Ratio (Max): -
- Turn On / Turn Off Time (Typ): 5µs, 100µs
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Darlington with Base
- Voltage - Output (Max): 100V
- Current - Output / Channel: -
- Voltage - Forward (Vf) (Typ): 1.3V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 1V
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.400", 10.16mm)
- Supplier Device Package: 6-DIP
