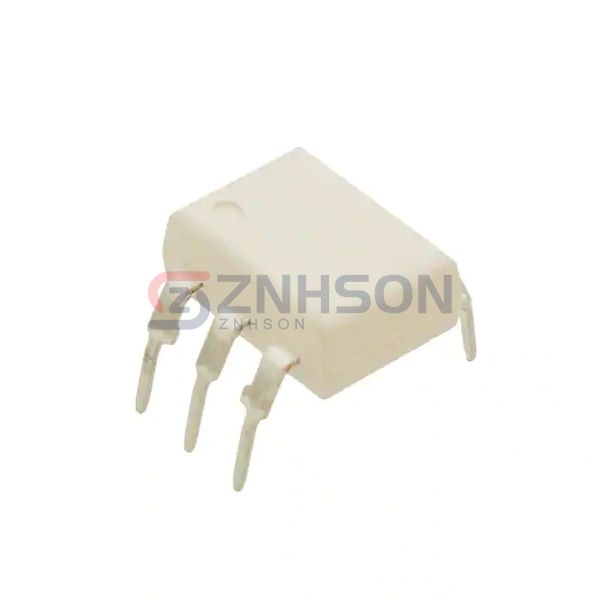

H11L1TVM
onsemi
onsemi
OPTOISO 4.17KV OPN COLL 6DIP
$1.03
Available to order
Reference Price (USD)
1+
$1.08000
10+
$0.83700
100+
$0.59790
500+
$0.45436
1,000+
$0.35871
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The onsemi H11L1TVM Optoisolators - Logic Output are designed for high-performance signal isolation in critical applications. Featuring robust construction, high noise immunity, and fast response times, these isolators are perfect for use in harsh industrial environments, automotive systems, and smart grids. Partner with onsemi for superior quality. Contact us for details!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 4170Vrms
- Common Mode Transient Immunity (Min): -
- Input Type: DC
- Output Type: Open Collector
- Current - Output / Channel: 50 mA
- Data Rate: 1MHz
- Propagation Delay tpLH / tpHL (Max): 4µs, 4µs
- Rise / Fall Time (Typ): 100ns, 100ns
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 30mA
- Voltage - Supply: 3V ~ 15V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.400", 10.16mm)
- Supplier Device Package: 6-DIP
