HCPL-0710-560E
Broadcom Limited
Broadcom Limited
OPTOISO 3.75KV PUSH PULL 8SO
$5.77
Available to order
Reference Price (USD)
1+
$5.77000
500+
$5.7123
1000+
$5.6546
1500+
$5.5969
2000+
$5.5392
2500+
$5.4815
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Broadcom Limited HCPL-0710-560E Optoisolators - Logic Output provide exceptional electrical isolation for your critical circuits. Featuring fast response times, high isolation voltage, and compact design, these optoisolators are suited for applications in renewable energy, automotive electronics, and consumer devices. Enhance your project's safety and efficiency. Get in touch for pricing details!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 10kV/µs
- Input Type: Logic
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: 12.5MBd
- Propagation Delay tpLH / tpHL (Max): 40ns, 40ns
- Rise / Fall Time (Typ): 13ns, 5ns
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO Tall
Related Products
Toshiba Semiconductor and Storage
TLP104(TPL,E
onsemi
FOD8001R2
Broadcom Limited
HCPL-1930#300
Broadcom Limited
5962-9085501KPC
Broadcom Limited
HCPL-M611-000E
SHARP/Socle Technology
PC400J00000F
Broadcom Limited
HCNW2211#300
Broadcom Limited
HCPL-7720-060E
Toshiba Semiconductor and Storage

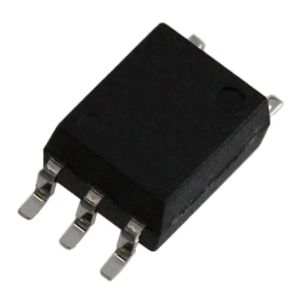

TLP2366(TPR,E
