HCPL-5400
Broadcom Limited
Broadcom Limited
OPTOISO 1.5KV TRI-STATE 8DIP
$104.30
Available to order
Reference Price (USD)
1+
$82.49000
10+
$76.99200
25+
$75.61760
100+
$69.29310
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Broadcom Limited HCPL-5400 Optoisolators - Logic Output are engineered for precision and reliability in demanding environments. Key features include high-speed data transmission, excellent EMI resistance, and robust packaging. Ideal for use in aerospace, defense, and telecommunications, these isolators deliver unmatched performance. Contact us to learn more or place an order!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 1500VDC
- Common Mode Transient Immunity (Min): 500V/µs
- Input Type: DC
- Output Type: Tri-State
- Current - Output / Channel: 25 mA
- Data Rate: 40Mbps
- Propagation Delay tpLH / tpHL (Max): 60ns, 60ns
- Rise / Fall Time (Typ): 15ns, 10ns
- Voltage - Forward (Vf) (Typ): 1.35V
- Current - DC Forward (If) (Max): 10mA
- Voltage - Supply: 4.75V ~ 5.25V
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: 8-CDIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
Related Products
Broadcom Limited
ACPL-024L-060E
Toshiba Semiconductor and Storage
TLPN137(D4-TP1,F)
Broadcom Limited
HCPL-2211-300E
Broadcom Limited
HCPL-4661-520E
Toshiba Semiconductor and Storage
TLP2601(TP1,F)
Renesas Electronics America Inc
PS9513L3-V-AX
Broadcom Limited
ACFL-6211T-560E
Broadcom Limited
ACPL-K71T-060E
Everlight Electronics Co Ltd

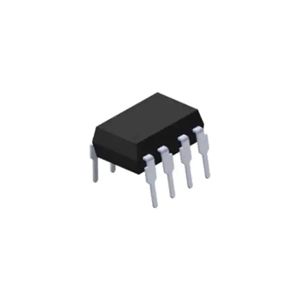

EL2630-V
