HCPL-817-060E
Broadcom Limited
Broadcom Limited
OPTOISOLATOR 5KV TRANSISTOR 4DIP
$0.16
Available to order
Reference Price (USD)
27,800+
$0.12150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your system's efficiency with HCPL-817-060E Optoisolators by Broadcom Limited, designed for Photovoltaic Output applications. These isolators are perfect for isolating digital signals, protecting microcontrollers, and ensuring safe operation in high-voltage environments. Suitable for consumer electronics, aerospace, and defense applications, they deliver consistent performance under extreme conditions. Get started today contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 50% @ 5mA
- Current Transfer Ratio (Max): 600% @ 5mA
- Turn On / Turn Off Time (Typ): -
- Rise / Fall Time (Typ): 4µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 50 mA
- Vce Saturation (Max): 200mV
- Operating Temperature: -30°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 4-DIP (0.300", 7.62mm)
- Supplier Device Package: 4-DIP
Related Products
Renesas Electronics America Inc
RV1S2281ACCSP-10YV#SC0
Renesas Electronics America Inc
PS2501-1-K-A
Vishay Semiconductor Opto Division
TCET1109
CEL
PS2705A-1-L-A
Vishay Semiconductor Opto Division
CNY17F-2X017T
Vishay Semiconductor Opto Division
IL300-EF-X007T
Vishay Semiconductor Opto Division

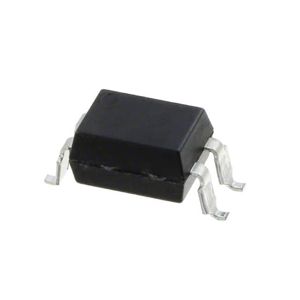

VO615A-4X018T
