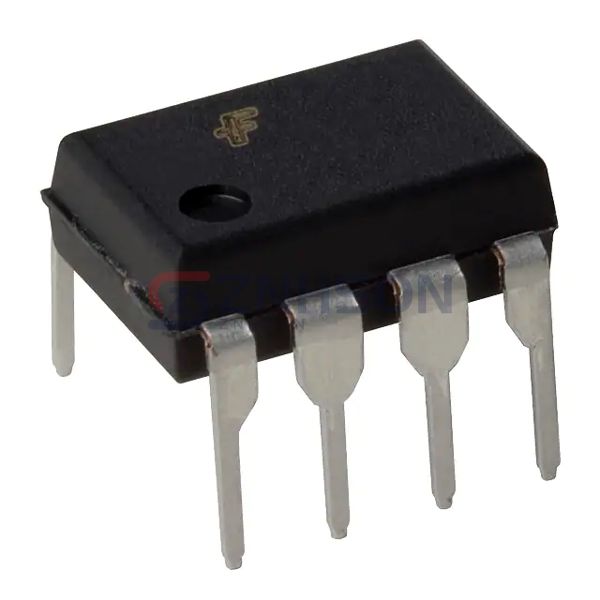

HCPL2630V
Fairchild Semiconductor
Fairchild Semiconductor
LOGIC IC OUTPUT OPTOCOUPLER, 2-E
$1.21
Available to order
Reference Price (USD)
1,000+
$1.30877
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your system's performance with Fairchild Semiconductor HCPL2630V Optoisolators - Logic Output. These isolators provide excellent signal integrity, high isolation voltage, and low propagation delay, making them suitable for power electronics, robotics, and communication systems. Choose Fairchild Semiconductor for dependable isolation solutions. Inquire today for bulk pricing!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 10kV/µs (Typ)
- Input Type: DC
- Output Type: Open Collector
- Current - Output / Channel: 50 mA
- Data Rate: 10Mbps
- Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
- Rise / Fall Time (Typ): 50ns, 12ns
- Voltage - Forward (Vf) (Typ): 1.4V
- Current - DC Forward (If) (Max): 30mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
