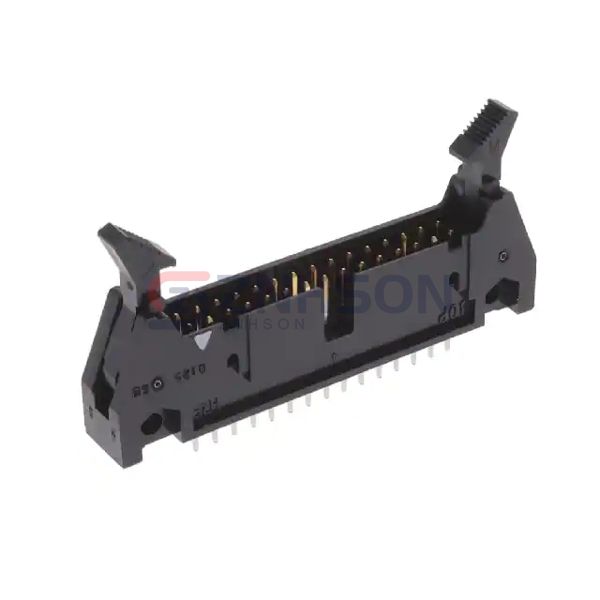

HIF3BA-30PA-2.54DSA(63)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 30POS 2.54MM
$4.70
Available to order
Reference Price (USD)
1+
$4.70000
500+
$4.653
1000+
$4.606
1500+
$4.559
2000+
$4.512
2500+
$4.465
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with HIF3BA-30PA-2.54DSA(63) Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.701" (17.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 200V
