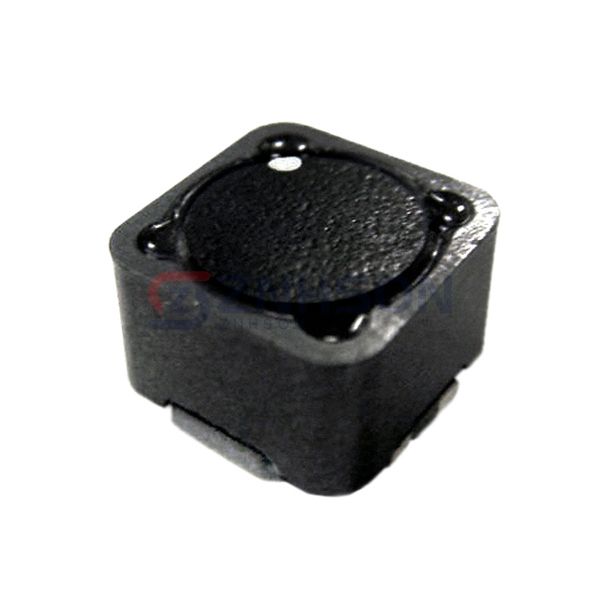

HM78D-1210560MLFTR
TT Electronics/BI Magnetics
TT Electronics/BI Magnetics
INDUCT ARRAY 2 COIL 56UH SMD
$2.31
Available to order
Reference Price (USD)
1+
$2.31000
500+
$2.2869
1000+
$2.2638
1500+
$2.2407
2000+
$2.2176
2500+
$2.1945
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HM78D-1210560MLFTR TT Electronics/BI Magnetics Inductors, Coils, and Chokes are engineered to meet the highest industry standards. Our Arrays and Signal Transformers feature compact designs, high inductance values, and excellent thermal stability, suitable for consumer electronics and medical devices. Whether you need bulk orders or customized specifications, we ve got you covered. Don t hesitate request a quote today and experience top-tier quality!
Specifications
- Product Status: Discontinued at Digi-Key
- Number of Coils: 2
- Inductance - Connected In Parallel: 56 µH
- Inductance - Connected In Series: 224 µH
- Tolerance: ±20%
- Current Rating - Parallel: 850 mA
- Current Rating - Series: 425 mA
- Current Saturation - Parallel: 4.9 A
- Current Saturation - Series: 2.45 A
- DC Resistance (DCR) - Parallel: 81mOhm Max
- DC Resistance (DCR) - Series: 324mOhm Max
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height: 0.413" (10.50mm)
