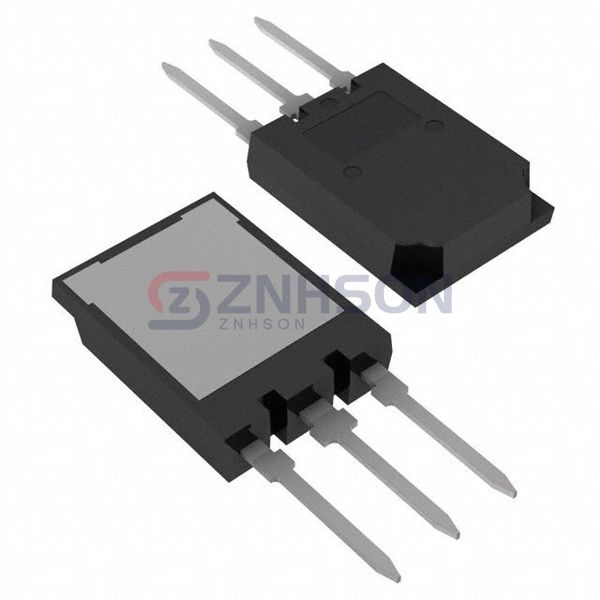

IKQ40N120CH3XKSA1
Infineon Technologies
Infineon Technologies
IGBT 1200V 80A TO247-3-46
$9.45
Available to order
Reference Price (USD)
1+
$9.68000
10+
$8.74100
240+
$7.23658
720+
$6.30151
1,200+
$5.48842
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IKQ40N120CH3XKSA1 Single IGBT from Infineon Technologies redefines reliability in power electronics. Tailored for renewable energy, telecom, and defense applications, it offers ultra-low switching losses and high-frequency operation. With anti-parallel diodes and short-circuit ratings, it s built for safety and performance. Infineon Technologies stands behind every IKQ40N120CH3XKSA1 with unmatched customer service. Start your order process by contacting our sales team today!
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2.35V @ 15V, 40A
- Power - Max: 500 W
- Switching Energy: 3.3mJ (on), 1.3mJ (off)
- Input Type: Standard
- Gate Charge: 190 nC
- Td (on/off) @ 25°C: 30ns/300ns
- Test Condition: 400V, 40A, 12Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: PG-TO247-3-46
