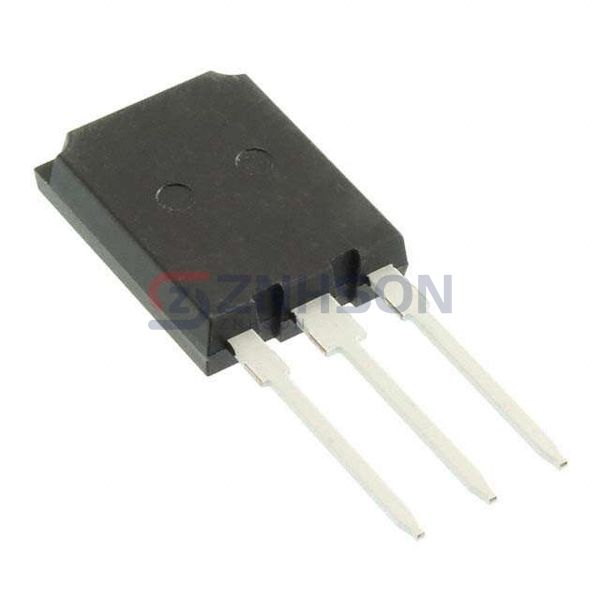

IKQ75N120CS6XKSA1
Infineon Technologies
Infineon Technologies
IGBT 1200V 75A TO247-3-46
$12.24
Available to order
Reference Price (USD)
1+
$18.05000
10+
$16.70800
240+
$14.33333
720+
$12.90865
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your power electronics with IKQ75N120CS6XKSA1 Single IGBTs by Infineon Technologies, engineered for precision and durability. Perfect for inverters, welding equipment, and automotive applications, these transistors provide fast switching speeds and excellent thermal stability. Key features include high voltage tolerance, low power loss, and compact design. Trust Infineon Technologies for top-quality components that meet global standards. Request a quote now to learn more about how IKQ75N120CS6XKSA1 can enhance your projects.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 150 A
- Current - Collector Pulsed (Icm): 300 A
- Vce(on) (Max) @ Vge, Ic: 2.15V @ 15V, 75A
- Power - Max: 880 W
- Switching Energy: 5.15mJ (on), 2.95mJ (off)
- Input Type: Standard
- Gate Charge: 530 nC
- Td (on/off) @ 25°C: 34ns/300ns
- Test Condition: 600V, 75A, 4Ohm, 15V
- Reverse Recovery Time (trr): 440 ns
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: PG-TO247-3-46
