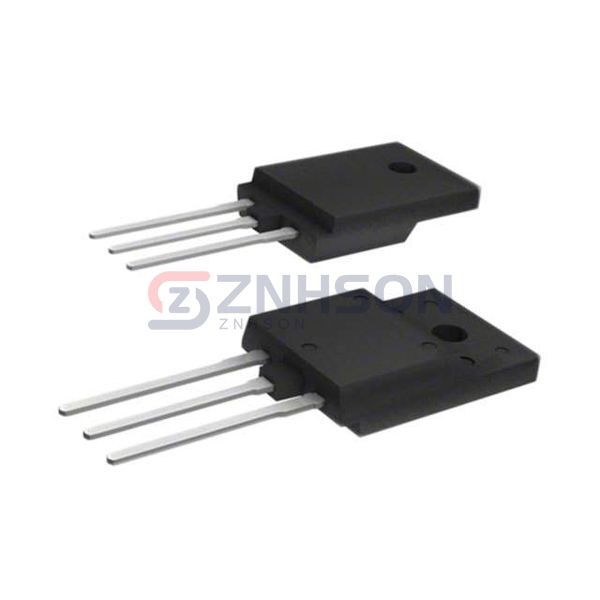

IPAN80R360P7XKSA1
Infineon Technologies
Infineon Technologies
MOSFET N-CH 800V 13A TO220
$3.25
Available to order
Reference Price (USD)
1+
$2.89000
10+
$2.62300
100+
$2.13780
500+
$1.69666
1,000+
$1.43193
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover IPAN80R360P7XKSA1, a versatile Transistors - FETs, MOSFETs - Single solution from Infineon Technologies, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 13A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 360mOhm @ 5.6A, 10V
- Vgs(th) (Max) @ Id: 3.5V @ 280µA
- Gate Charge (Qg) (Max) @ Vgs: 30 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 930 pF @ 500 V
- FET Feature: -
- Power Dissipation (Max): 30W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: PG-TO220-FP
- Package / Case: TO-220-3 Full Pack
