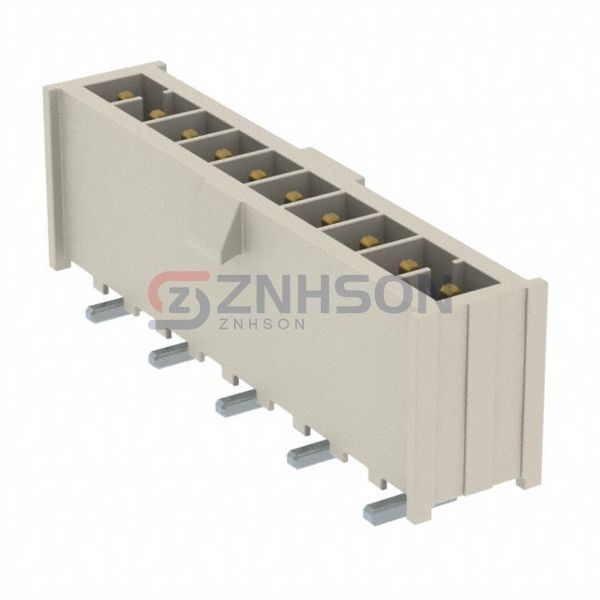

IPL1-110-02-L-S-K
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 10POS 2.54MM
$5.43
Available to order
Reference Price (USD)
1+
$3.13000
21+
$3.00000
105+
$2.50000
504+
$2.12500
1,008+
$1.81250
5,019+
$1.62500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IPL1-110-02-L-S-K Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.215" (5.46mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.320" (8.13mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 675VAC, 954VDC
