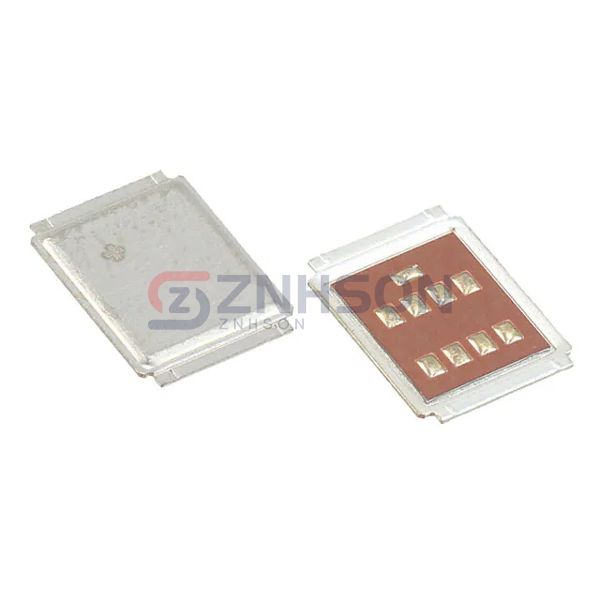

IRF7769L1TRPBF
Infineon Technologies
Infineon Technologies
MOSFET N-CH 100V 20A DIRECTFET
$5.75
Available to order
Reference Price (USD)
4,000+
$2.09209
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance IRF7769L1TRPBF from Infineon Technologies, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, IRF7769L1TRPBF delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Ta), 124A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 3.5mOhm @ 74A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 300 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 11560 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.3W (Ta), 125W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DirectFET™ Isometric L8
- Package / Case: DirectFET™ Isometric L8
Related Products
onsemi
NTBGS2D5N06C
IXYS
IXFR120N20
Infineon Technologies
IPB100N10S305ATMA1
STMicroelectronics
STU65N3LLH5
onsemi
FDPF041N06BL1-F154
onsemi
NTD4855NT4G
IXYS

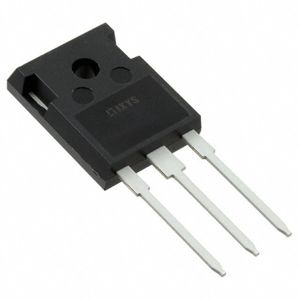

IXFH56N30X3
Vishay Siliconix

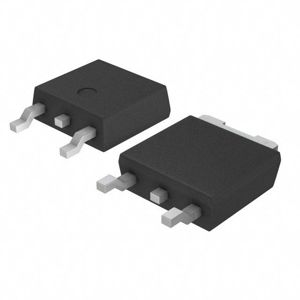

IRFR214TRLPBF
Microchip Technology

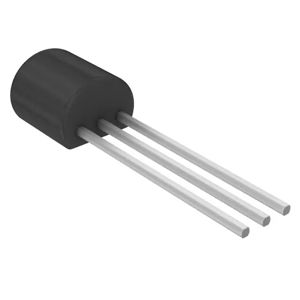

VN10KN3-G-P013
