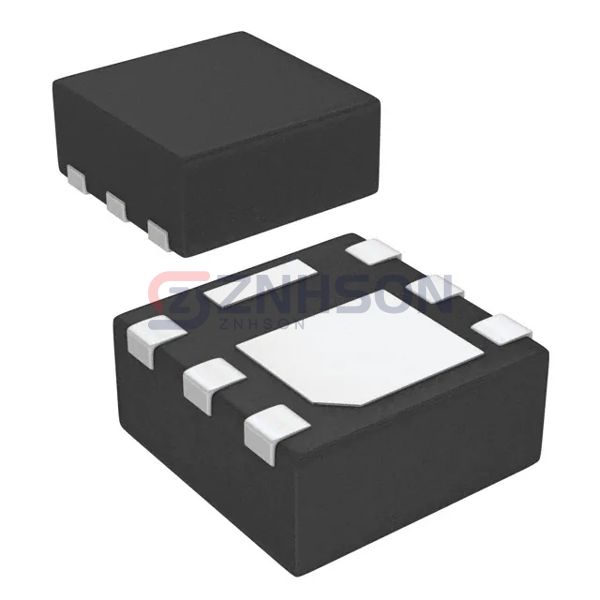

IRLHS2242TRPBF
Infineon Technologies
Infineon Technologies
MOSFET P-CH 20V 7.2A/15A 6PQFN
$0.68
Available to order
Reference Price (USD)
4,000+
$0.23444
8,000+
$0.21931
12,000+
$0.20419
28,000+
$0.19360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with IRLHS2242TRPBF, a premium Transistors - FETs, MOSFETs - Single from Infineon Technologies. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust IRLHS2242TRPBF for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 7.2A (Ta), 15A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 31mOhm @ 8.5A, 4.5V
- Vgs(th) (Max) @ Id: 1.1V @ 10µA
- Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 10 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 877 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 2.1W (Ta), 9.6W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-PQFN (2x2)
- Package / Case: 6-PowerVDFN
