ISL9N306AP3
Fairchild Semiconductor
Fairchild Semiconductor
N-CHANNEL POWER MOSFET
$0.70
Available to order
Reference Price (USD)
1+
$0.70000
500+
$0.693
1000+
$0.686
1500+
$0.679
2000+
$0.672
2500+
$0.665
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
ISL9N306AP3 by Fairchild Semiconductor is a standout in the Discrete Semiconductor Products market, specifically for Transistors - FETs, MOSFETs - Single applications. Engineered for precision, this MOSFET offers exceptional gate control, low leakage current, and high power density. Ideal for use in audio amplifiers, DC-DC converters, and battery management systems, ISL9N306AP3 ensures top-tier performance. Don t miss out on this versatile component request a sample or quote now!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 75A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 6mOhm @ 75A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 90 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3400 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 125W (Ta)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
Related Products
Diodes Incorporated
DMP2130L-7
Fairchild Semiconductor
SFU9034TU
Toshiba Semiconductor and Storage
TK28V65W,LQ
STMicroelectronics
STD12N50M2
IXYS
IXTH80N20L
IXYS
IXTK120N65X2
IXYS

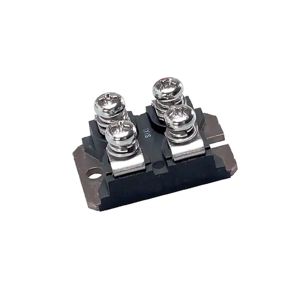

IXFN44N80Q3
Texas Instruments

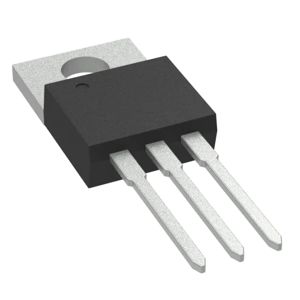

CSD18533KCS
