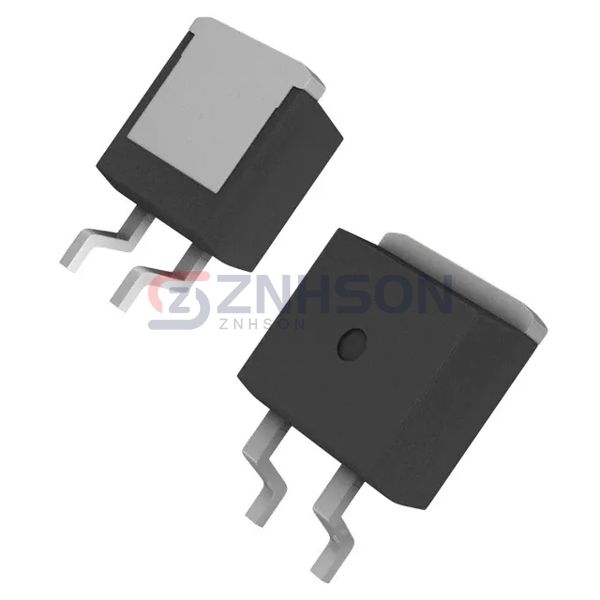

IXGA20N120B3
IXYS
IXYS
IGBT 1200V 36A 180W TO263
$4.83
Available to order
Reference Price (USD)
50+
$4.37060
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXGA20N120B3 Single IGBT from IXYS delivers unmatched performance in power conversion and control. Ideal for UPS systems, induction heating, and industrial automation, this transistor combines high efficiency with rugged reliability. Features such as short-circuit protection and low EMI make it a standout choice. IXYS's commitment to innovation ensures IXGA20N120B3 meets the demands of modern electronics. Get in touch for bulk orders and customization options!
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 36 A
- Current - Collector Pulsed (Icm): 80 A
- Vce(on) (Max) @ Vge, Ic: 3.1V @ 15V, 16A
- Power - Max: 180 W
- Switching Energy: 920µJ (on), 560µJ (off)
- Input Type: Standard
- Gate Charge: 51 nC
- Td (on/off) @ 25°C: 16ns/150ns
- Test Condition: 600V, 16A, 15Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263AA
