IXGH40N120C3D1
IXYS
IXYS
IGBT 1200V 75A 380W TO247
$13.72
Available to order
Reference Price (USD)
30+
$9.96600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXGH40N120C3D1 Single IGBT from IXYS delivers unmatched performance in power conversion and control. Ideal for UPS systems, induction heating, and industrial automation, this transistor combines high efficiency with rugged reliability. Features such as short-circuit protection and low EMI make it a standout choice. IXYS's commitment to innovation ensures IXGH40N120C3D1 meets the demands of modern electronics. Get in touch for bulk orders and customization options!
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 75 A
- Current - Collector Pulsed (Icm): 180 A
- Vce(on) (Max) @ Vge, Ic: 4.4V @ 15V, 30A
- Power - Max: 380 W
- Switching Energy: 1.8mJ (on), 550µJ (off)
- Input Type: Standard
- Gate Charge: 142 nC
- Td (on/off) @ 25°C: 17ns/130ns
- Test Condition: 600V, 30A, 3Ohm, 15V
- Reverse Recovery Time (trr): 100 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD
Related Products
STMicroelectronics
STGWA30HP65FB
Fairchild Semiconductor
HGT1S2N120CN
Alpha & Omega Semiconductor Inc.
AOT5B60D
IXYS
IXYK200N65B3
Infineon Technologies
IKD03N60RFATMA1
Renesas Electronics America Inc
RJP6085DPK-00#T0
Infineon Technologies
SGW30N60FKSA1
Microchip Technology

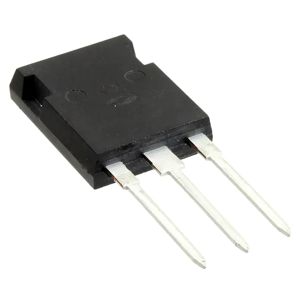

APT30GP60BDQ1G
