IXXX100N60C3H1
IXYS
IXYS

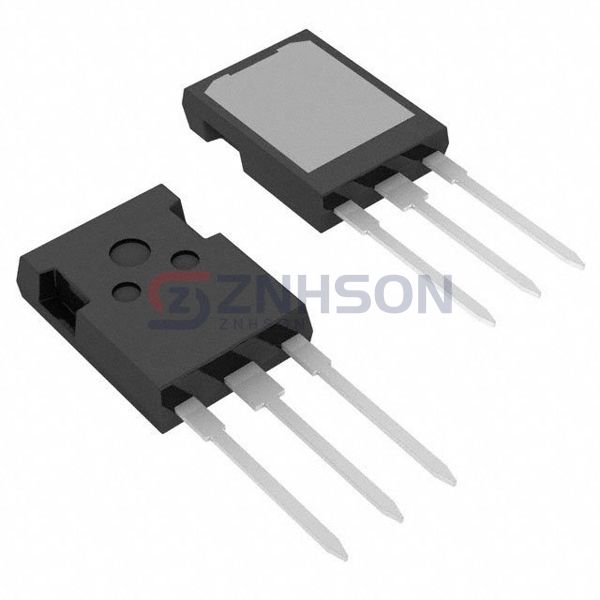

IGBT 600V 170A 695W PLUS247
$21.83
Available to order
Reference Price (USD)
30+
$17.67667
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance IXXX100N60C3H1 Single IGBTs from IXYS, designed for efficient power management in various industrial applications. These transistors offer superior switching capabilities and thermal performance, making them ideal for motor drives, renewable energy systems, and power supplies. Features include low saturation voltage, high current capacity, and robust construction. Whether you're upgrading existing systems or designing new solutions, IXXX100N60C3H1 ensures reliability and efficiency. Contact us today for pricing and technical support!
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 170 A
- Current - Collector Pulsed (Icm): 340 A
- Vce(on) (Max) @ Vge, Ic: 2.2V @ 15V, 70A
- Power - Max: 695 W
- Switching Energy: 2mJ (on), 950µJ (off)
- Input Type: Standard
- Gate Charge: 150 nC
- Td (on/off) @ 25°C: 30ns/90ns
- Test Condition: 360V, 70A, 2Ohm, 15V
- Reverse Recovery Time (trr): 140 ns
- Operating Temperature: -
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: PLUS247™-3
