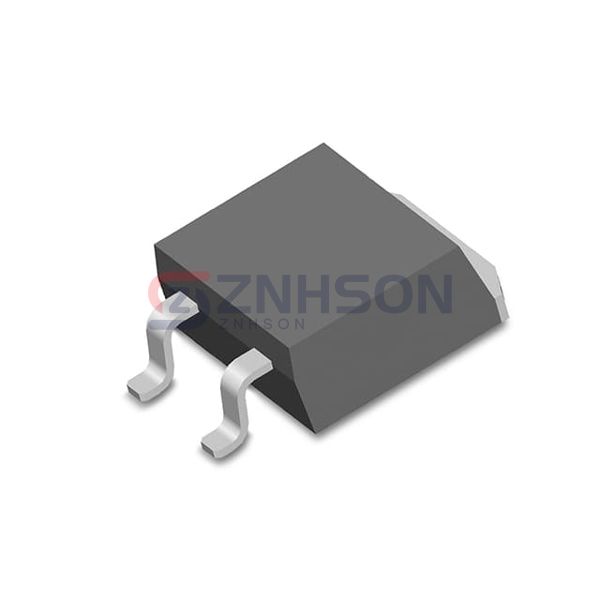

IXYA20N120C4HV
IXYS
IXYS
IGBT 1200V 20A X4 HSPEED TO263D2
$10.61
Available to order
Reference Price (USD)
1+
$10.61000
500+
$10.5039
1000+
$10.3978
1500+
$10.2917
2000+
$10.1856
2500+
$10.0795
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXYA20N120C4HV Single IGBT by IXYS sets the standard for power semiconductor excellence. Designed for applications like electric vehicles and industrial machinery, it offers high current density and minimal thermal resistance. Key benefits include easy integration, superior durability, and compliance with international certifications. Partner with IXYS for cutting-edge solutions tailored to your needs. Contact us now to discuss specifications and delivery options!
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 68 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 20A
- Power - Max: 375 W
- Switching Energy: 4.4mJ (on), 1mJ (off)
- Input Type: Standard
- Gate Charge: 44 nC
- Td (on/off) @ 25°C: 14ns/160ns
- Test Condition: 960mV, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 53 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263HV
