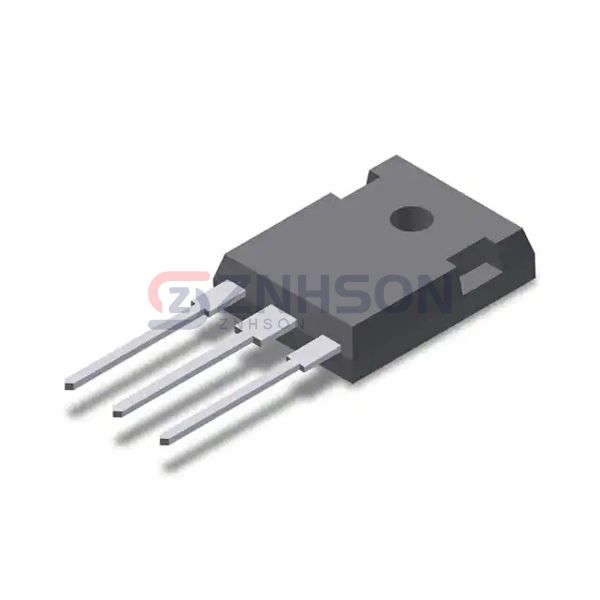

IXYH85N120C4
IXYS
IXYS
IGBT 1200V 85A GEN4 XPT TO247
$14.05
Available to order
Reference Price (USD)
1+
$14.05000
500+
$13.9095
1000+
$13.769
1500+
$13.6285
2000+
$13.488
2500+
$13.3475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose IXYH85N120C4 Single IGBTs by IXYS for superior power handling in demanding environments. From railway systems to industrial drives, these transistors excel with features like avalanche ruggedness and integrated diodes. Their modular design simplifies installation and maintenance. IXYS's reputation for quality makes IXYH85N120C4 a smart investment. Email us now for datasheets and volume discounts!
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 240 A
- Current - Collector Pulsed (Icm): 420 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 85A
- Power - Max: 1150 W
- Switching Energy: 4.3mJ (on), 2mJ (off)
- Input Type: Standard
- Gate Charge: 192 nC
- Td (on/off) @ 25°C: 35ns/280ns
- Test Condition: 600V, 50A, 5Ohm, 15V
- Reverse Recovery Time (trr): 60 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247 (IXTH)
