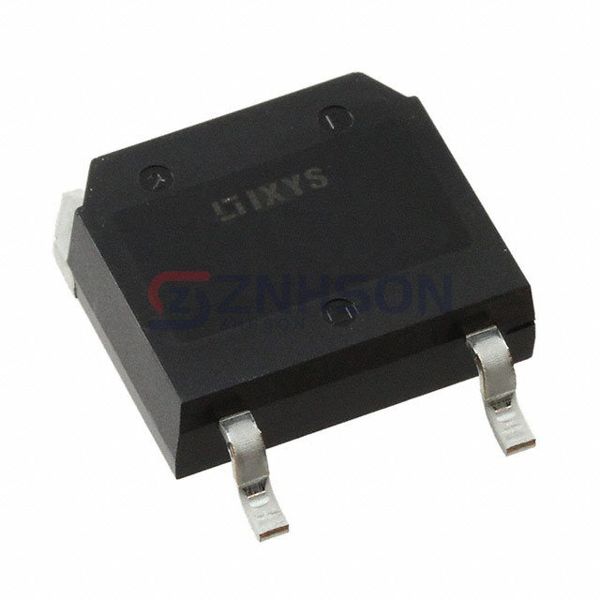

IXYT20N120C3D1HV
IXYS
IXYS
IGBT
$9.78
Available to order
Reference Price (USD)
30+
$9.62167
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize power control with IXYT20N120C3D1HV Single IGBTs from IXYS, a leader in semiconductor solutions. Suited for medical equipment, aerospace, and consumer electronics, these transistors deliver precise switching and minimal noise. Highlights include high input impedance, scalable power ratings, and RoHS compliance. IXYS ensures IXYT20N120C3D1HV meets rigorous performance benchmarks. Inquire today to find the perfect fit for your application!
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 36 A
- Current - Collector Pulsed (Icm): 88 A
- Vce(on) (Max) @ Vge, Ic: 3.4V @ 15V, 20A
- Power - Max: 230 W
- Switching Energy: 1.3mJ (on), 1mJ (off)
- Input Type: Standard
- Gate Charge: 53 nC
- Td (on/off) @ 25°C: 20ns/90ns
- Test Condition: 600V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 29 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
- Supplier Device Package: TO-268HV (IXYT)
