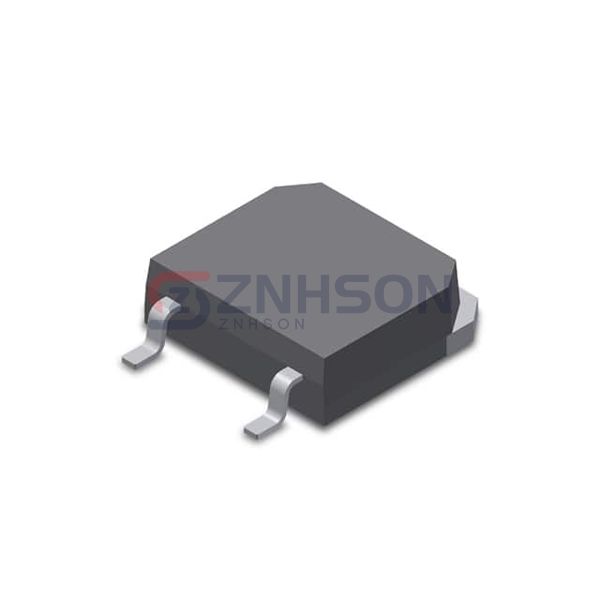

IXYT40N120A4HV
IXYS
IXYS
IGBT 1200V 40A GNX4 XPT TO-268HV
$10.41
Available to order
Reference Price (USD)
1+
$10.41433
500+
$10.3101867
1000+
$10.2060434
1500+
$10.1019001
2000+
$9.9977568
2500+
$9.8936135
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXYT40N120A4HV Single IGBT by IXYS sets the standard for power semiconductor excellence. Designed for applications like electric vehicles and industrial machinery, it offers high current density and minimal thermal resistance. Key benefits include easy integration, superior durability, and compliance with international certifications. Partner with IXYS for cutting-edge solutions tailored to your needs. Contact us now to discuss specifications and delivery options!
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 140 A
- Current - Collector Pulsed (Icm): 275 A
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 32A
- Power - Max: 600 W
- Switching Energy: 2.3mJ (on), 3.75mJ (off)
- Input Type: Standard
- Gate Charge: 90 nC
- Td (on/off) @ 25°C: 22ns/204ns
- Test Condition: 600V, 32A, 5Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
- Supplier Device Package: TO-268HV (IXYT)
