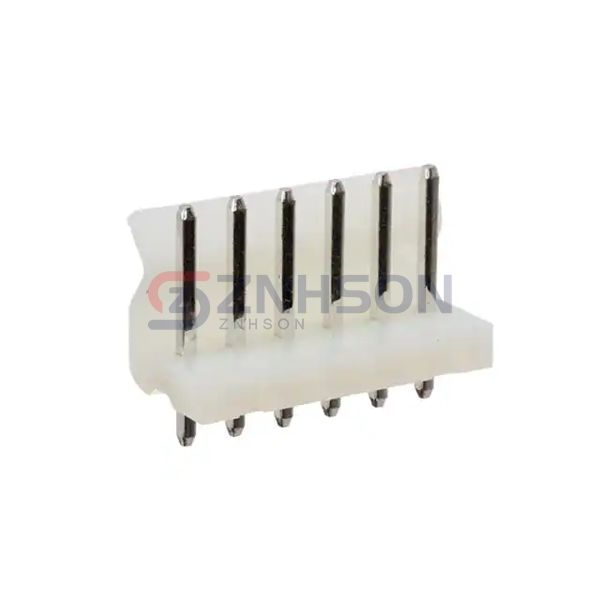

LHB-06-SA1
Adam Tech
Adam Tech
CONN HEADER VERT 6POS 3.96MM
$0.48
Available to order
Reference Price (USD)
1+
$0.46000
10+
$0.43200
100+
$0.33120
500+
$0.28800
1,000+
$0.23760
5,000+
$0.20880
10,000+
$0.19440
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LHB-06-SA1 Adam Tech Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.041" (1.04mm)
- Contact Length - Post: 0.145" (3.68mm)
- Overall Contact Length: 0.690" (17.53mm)
- Insulation Height: 0.504" (12.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: White
- Current Rating (Amps): 5A
- Voltage Rating: 250VAC
