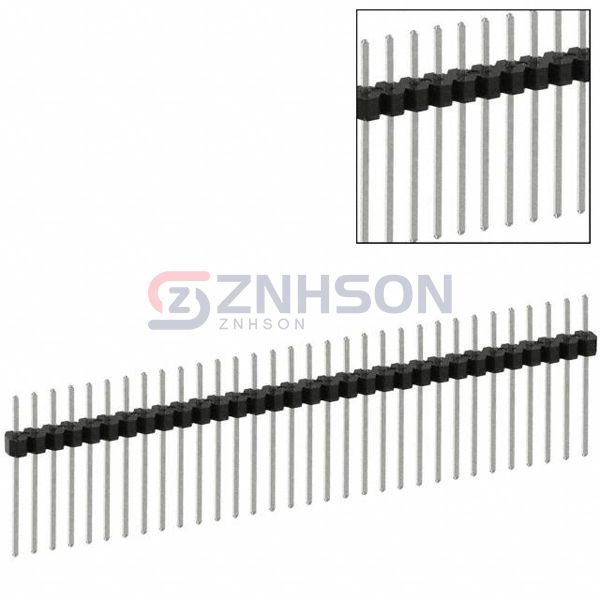

PEC33SAGN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 33POS 2.54MM
$3.96
Available to order
Reference Price (USD)
1+
$3.96000
10+
$3.80200
25+
$3.48480
50+
$3.32640
100+
$3.16800
250+
$2.77200
500+
$2.69280
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC33SAGN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 33
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.720" (18.29mm)
- Overall Contact Length: 1.050" (26.67mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
5-104915-1
Preci-Dip
832-10-060-30-001101
Samtec Inc.
TFC-120-22-L-D-A-K
Preci-Dip
399-80-109-10-009101
Sullins Connector Solutions
PRPC023SACN-RC
Amphenol ICC (FCI)
861400081YO2319LF
Samtec Inc.
TSM-107-01-T-DV-006
Harwin Inc.
M80-5T10605M1-02-331-00-000

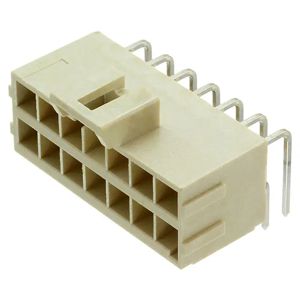

Molex
