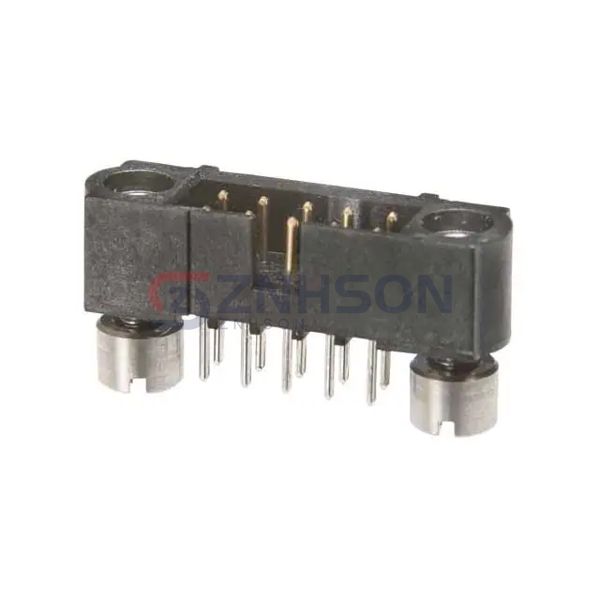

M80-5T11642M3
Harwin Inc.
Harwin Inc.
CONN HDR 2MM PCB 16POS
$14.72
Available to order
Reference Price (USD)
1+
$14.71740
500+
$14.570226
1000+
$14.423052
1500+
$14.275878
2000+
$14.128704
2500+
$13.98153
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-5T11642M3 Harwin Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Threaded
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A
- Voltage Rating: 800VAC/DC
Related Products
TE Connectivity AMP Connectors
147062-3
Oupiin
2011-1X01TSB
Amphenol Sine Systems Corp
ATM15-08PB-BM01
Amphenol ICC (FCI)
54202-T0813LF
Samtec Inc.
TMM-103-05-S-D-SM-P-TR
Samtec Inc.
EHT-105-01-L-D-SM-P
Preci-Dip
351-10-110-00-004101
Hirose Electric Co Ltd
MDF7B-11P-2.54DSA(55)
Samtec Inc.

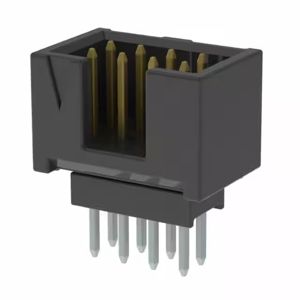

ZSS-104-01-L-D-472
