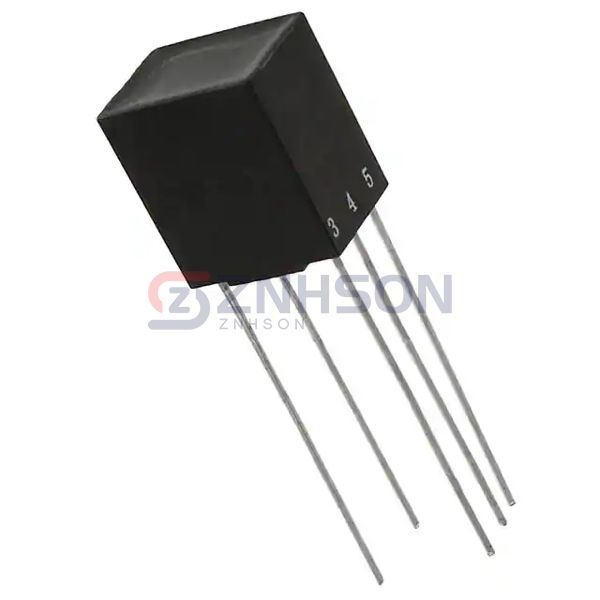

MET-60-T
Triad Magnetics
Triad Magnetics
TRANSFORMER 135:135CT 10.0MADC
$11.69
Available to order
Reference Price (USD)
1+
$11.65000
10+
$8.92600
25+
$7.56280
50+
$7.43860
100+
$7.06670
250+
$6.99232
500+
$6.89314
1,000+
$6.81876
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve crystal-clear audio with Triad Magnetics MET-60-T Audio Transformers, designed for versatility and top-notch performance. Perfect for use in studios, theaters, and home audio systems, these transformers ensure optimal signal transfer. Triad Magnetics is your trusted partner for high-end audio components. Reach out today for pricing and availability details.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 135
- Impedance - Secondary (Ohms): 135CT
- DC Resistance (DCR) - Primary: 10.5Ohm
- DC Resistance (DCR) - Secondary: 10.8Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 50mW
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.409" L x 0.310" W (10.40mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
