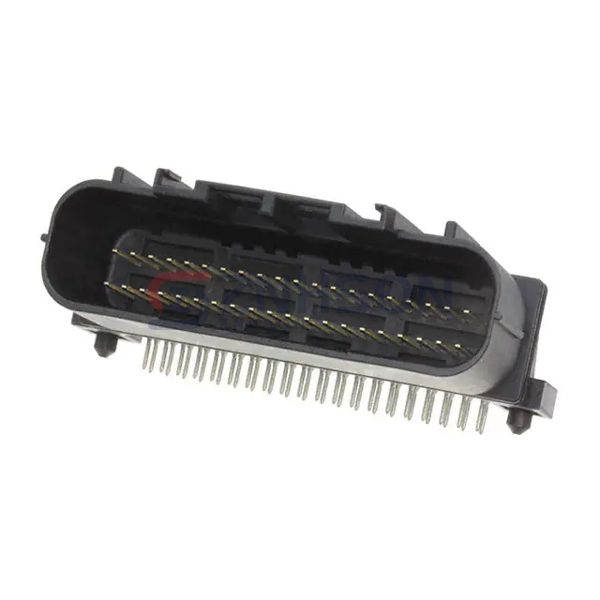

MX23A40NF1
JAE Electronics
JAE Electronics
CONN HEADER R/A 40POS 2.5MM
$19.88
Available to order
Reference Price (USD)
1+
$20.87000
10+
$19.38300
25+
$17.39520
50+
$16.89800
100+
$14.91000
250+
$13.91600
500+
$13.61780
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MX23A40NF1 JAE Electronics Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 40
- Number of Rows: 3
- Row Spacing - Mating: 0.173" (4.40mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.122" (3.10mm)
- Overall Contact Length: -
- Insulation Height: 0.720" (18.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: Waterproof
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
