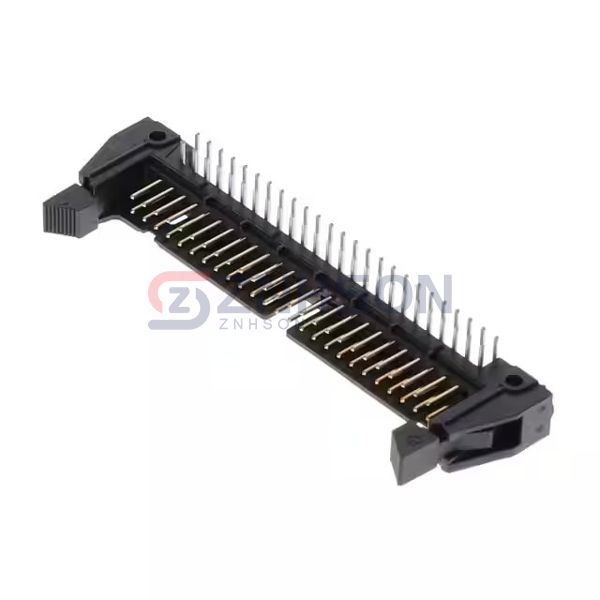

N3433-1202RB

Manufacturer

Description:

CONN HEADER R/A 50POS 2.54MM

Datasheet:

N3433-1202RB Datasheet

$10.22

Available to order

Reference Price (USD)

1,050+

$4.68160

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The N3433-1202RB 3M Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 50
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 3 Wall
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Latch Lock/Eject Hooks, Short
Contact Length - Mating: 0.240" (6.10mm)
Contact Length - Post: 0.112" (2.84mm)
Overall Contact Length: -
Insulation Height: 0.310" (7.87mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: Keying Slot, Mounting Flange
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1.75A
Voltage Rating: -
