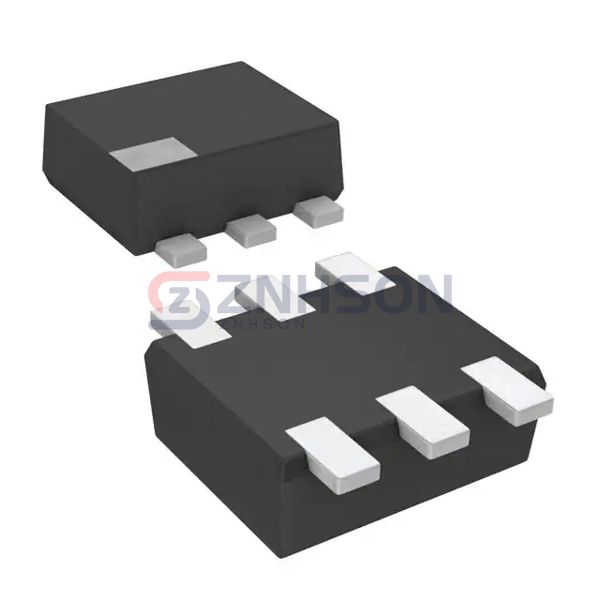

NP0G3D100A
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN/PNP SSSMINI6
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Panasonic Electronic Components presents the NP0G3D100A series innovative Pre-Biased BJT Arrays redefining compact circuit solutions. These transistor arrays feature carefully matched parameters and integrated biasing for plug-and-play functionality in diverse applications. Typical uses include interface circuits between different logic families, LED matrix control, and power management in IoT devices. Engineering advantages comprise low noise operation, high current capability, and excellent batch-to-batch consistency. With Panasonic Electronic Components's global supply chain support, you'll never face stock shortages. Get detailed product information and volume discounts send your NP0G3D100A inquiry today and our experts will assist you!
Specifications
- Product Status: Obsolete
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 80mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 4.7kOhms, 47kOhms
- Resistor - Emitter Base (R2): 4.7kOhms, 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 20 @ 5mA, 10V / 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 150MHz, 80MHz
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-963
- Supplier Device Package: SSSMini6-F1
