NSBC143TPDXV6T1G
onsemi
onsemi
TRANS PREBIAS NPN/PNP 50V SOT563
$0.08
Available to order
Reference Price (USD)
1+
$0.08099
500+
$0.0801801
1000+
$0.0793702
1500+
$0.0785603
2000+
$0.0777504
2500+
$0.0769405
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing onsemi's NSBC143TPDXV6T1G advanced Pre-Biased Transistor Arrays engineered for modern electronics. These BJT arrays provide ready-to-use solutions with internal resistor networks, significantly reducing design complexity and BOM costs. Application highlights include power supply circuits, display drivers, and microcontroller interfaces in automotive, aerospace, and industrial environments. Technical features comprise low VCE(sat), tight current gain matching, and RoHS compliance for environmental safety. onsemi stands behind every NSBC143TPDXV6T1G unit with rigorous quality testing. Streamline your procurement process contact our sales team via the inquiry form for personalized assistance!
Specifications
- Product Status: Active
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 4.7kOhms
- Resistor - Emitter Base (R2): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 160 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 500mW
- Mounting Type: Surface Mount

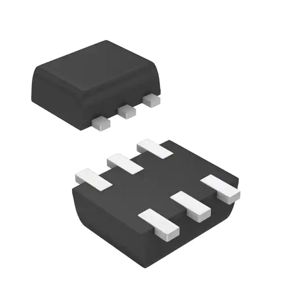

- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
