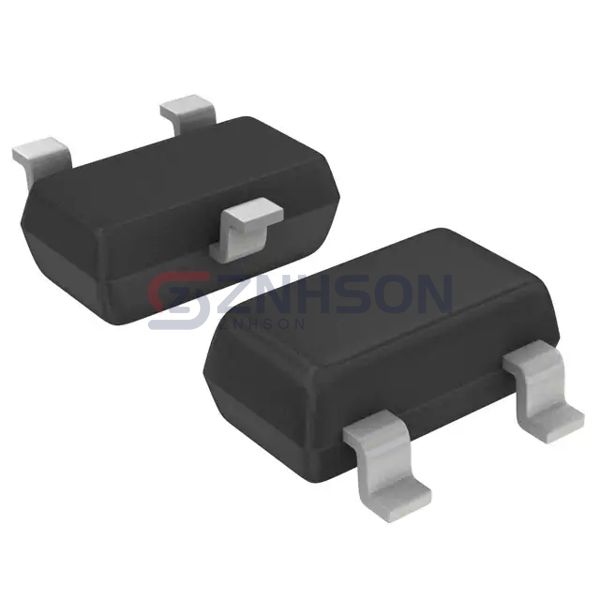

NSVMUN2236T1G
onsemi
onsemi
SS SC59 BR XSTR NPN 50V
$0.04
Available to order
Reference Price (USD)
1+
$0.03625
500+
$0.0358875
1000+
$0.035525
1500+
$0.0351625
2000+
$0.0348
2500+
$0.0344375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality NSVMUN2236T1G from onsemi, a leading solution in the Discrete Semiconductor Products category. Our Transistors - Bipolar (BJT) - Single, Pre-Biased are designed for efficiency and reliability, making them ideal for various electronic applications. These transistors feature excellent performance, low power consumption, and robust construction. Perfect for amplification and switching circuits, they are widely used in consumer electronics, automotive systems, and industrial equipment. Trust onsemi for superior semiconductor solutions. Contact us today for a quote or more information!
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 100 kOhms
- Resistor - Emitter Base (R2): 100 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 230 mW
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SC-59
