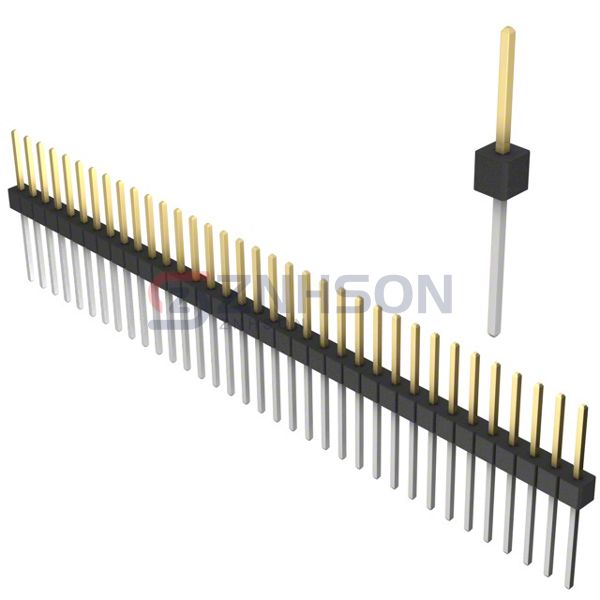

PBC35SFDN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 35POS 2.54MM
$4.20
Available to order
Reference Price (USD)
1+
$4.20000
10+
$4.03200
25+
$3.69600
50+
$3.52800
100+
$3.36000
250+
$2.94000
500+
$2.85600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with PBC35SFDN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins, engineered for superior performance and longevity. Featuring high-grade materials and precision design, these connectors provide secure and stable connections in demanding environments. Perfect for PCB applications, automation, and telecommunications. Ready to enhance your project? Submit an inquiry now and our team will assist you promptly!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 35
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.838" (21.29mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1-1744037-2
Sullins Connector Solutions
PEC35SFAN
Hirose Electric Co Ltd
DF3E-2P-2V(24)
Mill-Max Manufacturing Corp.
802-10-024-10-002000
Samtec Inc.
FSH-120-04-F-DH
Samtec Inc.
MMT-109-02-S-SH-P
3M
929836-03-10
Adam Tech
LHB-02-SA1
TE Connectivity AMP Connectors

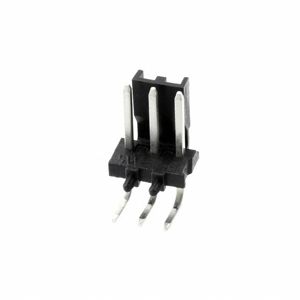

1744156-3
