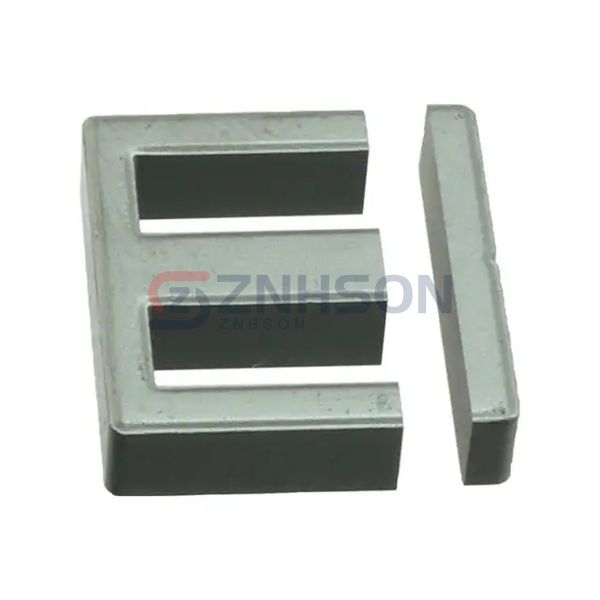

PC47EI40-Z
TDK Corporation
TDK Corporation
EI CORE SMPS TRANSFORMER 1 SET
$4.42
Available to order
Reference Price (USD)
1+
$4.20000
10+
$3.58100
25+
$2.72440
50+
$2.64680
150+
$2.33533
300+
$2.17967
600+
$2.02397
1,050+
$1.94612
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit efficiency with TDK Corporation PC47EI40-Z Ferrite Cores, engineered for high-frequency applications and minimal energy loss. These cores are indispensable in power inductors, common-mode chokes, and broadband transformers. Their robust construction ensures durability and consistent performance. Suitable for renewable energy systems, automotive electronics, and more. Don't compromise on quality reach out to our sales team for personalized solutions and competitive pricing!
Specifications
- Product Status: Active
- Core Type: E
- Supplier Device Package: -
- Material: PC47
- Diameter: -
- Inductance Factor (Al): 4.86 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): 2500
- Core Factor (ΣI/A) mm-1: 0.52
- Effective Length (le) mm: 77
- Effective Area (Ae) mm²: 148
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 11400
- Finish: Uncoated
- Height: -
- Length: 1.575" (40.00mm)
- Width: -
