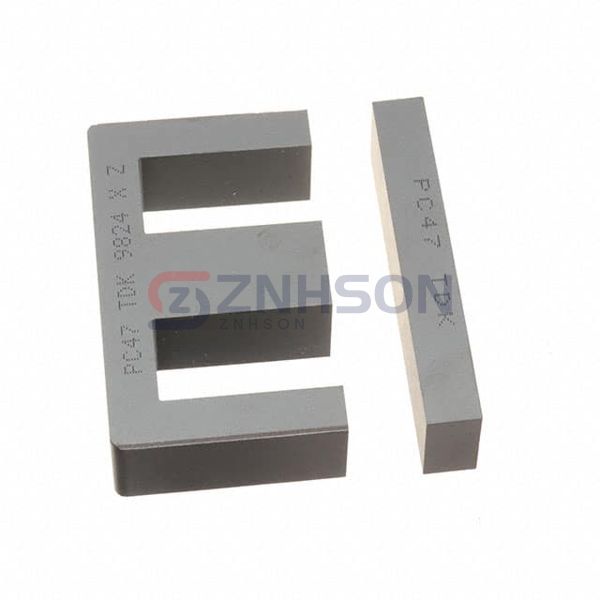

PC47EI60-Z
TDK Corporation
TDK Corporation
EI CORE SMPS TRANSFORMER 1 SET
$9.81
Available to order
Reference Price (USD)
1+
$9.33000
10+
$7.95100
25+
$6.04960
64+
$5.87672
128+
$5.18531
256+
$4.83965
512+
$4.49396
1,024+
$4.32112
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Streamline your power electronics with TDK Corporation PC47EI60-Z Ferrite Cores, engineered for maximum efficiency and reliability. These cores are crucial in applications like solar inverters, motor drives, and wireless charging systems. Their excellent magnetic characteristics ensure low loss and high performance. Suitable for both commercial and industrial uses, our Ferrite Cores are a smart investment. Get in touch today to discuss your requirements and place an order!
Specifications
- Product Status: Active
- Core Type: E
- Supplier Device Package: -
- Material: PC47
- Diameter: -
- Inductance Factor (Al): 5.67 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): 2500
- Core Factor (ΣI/A) mm-1: 0.441
- Effective Length (le) mm: 109
- Effective Area (Ae) mm²: 247
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 26900
- Finish: Uncoated
- Height: -
- Length: 2.362" (60.00mm)
- Width: 0.614" (15.60mm)
Related Products
TDK Corporation
PC47EER28L-Z
EPCOS - TDK Electronics
B62152A0007X001
EPCOS - TDK Electronics

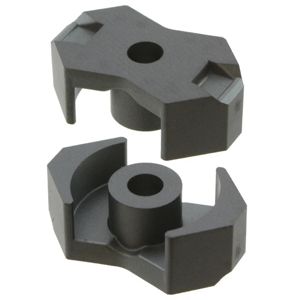

B65807C0400A048
EPCOS - TDK Electronics

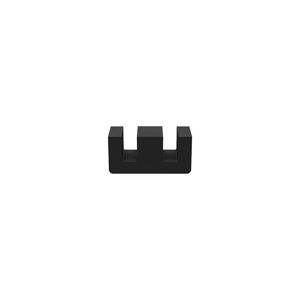

B66894G0000X195
EPCOS - TDK Electronics

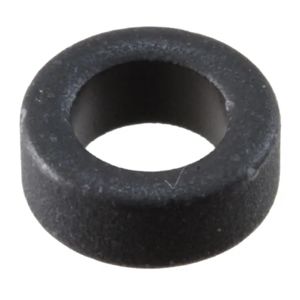

B64290P0739X065
EPCOS - TDK Electronics

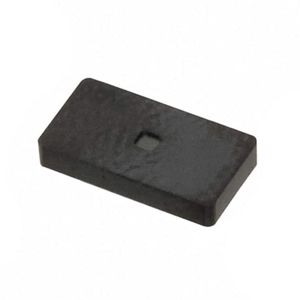

B66453K0000X608
EPCOS - TDK Electronics

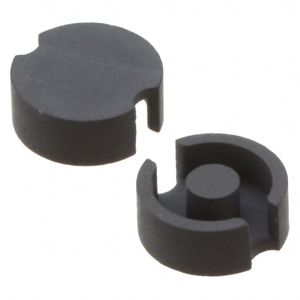

B65491C0000Y001
EPCOS - TDK Electronics

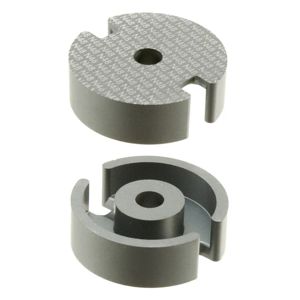

B65701D0000R048
EPCOS - TDK Electronics

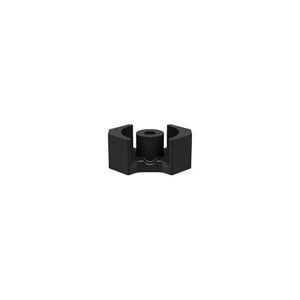

B65813D0400A048
