PC47EPC19-Z
TDK Corporation
TDK Corporation

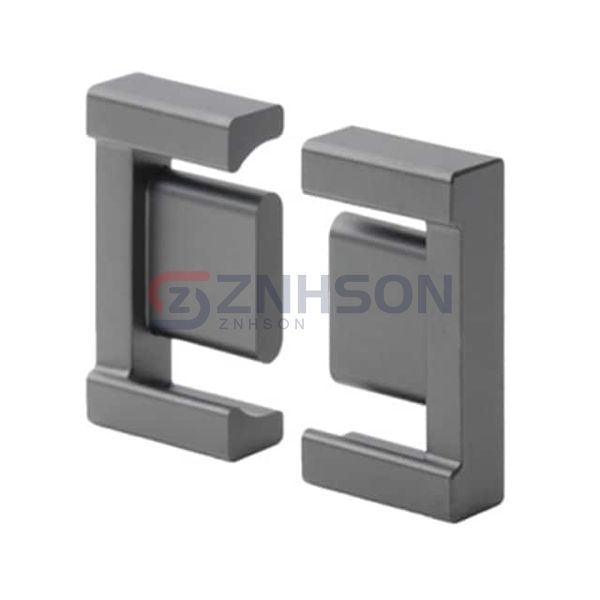

FERRITE CORE EPC 940NH 2PC SET
$2.25
Available to order
Reference Price (USD)
1+
$2.15000
10+
$1.85000
25+
$1.40600
50+
$1.33200
100+
$1.18400
400+
$1.11000
800+
$1.03600
1,200+
$0.95090
5,200+
$0.92500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your circuit designs with TDK Corporation PC47EPC19-Z Ferrite Cores, renowned for their high permeability and minimal energy dissipation. These cores are pivotal in creating efficient transformers, inductors, and chokes for various industries. Their robust performance in high-frequency applications makes them ideal for telecommunications and power electronics. Don't miss out on top-tier quality contact us now for pricing and availability details!
Specifications
- Product Status: Active
- Core Type: EPC
- Supplier Device Package: EPC 19
- Material: PC47
- Diameter: -
- Inductance Factor (Al): 940 nH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 2.03
- Effective Length (le) mm: 46.1
- Effective Area (Ae) mm²: 22.7
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 1050
- Finish: Uncoated
- Height: 0.384" (9.78mm)
- Length: 0.752" (19.10mm)
- Width: 0.236" (6.00mm)
