PC47EPC30-Z
TDK Corporation
TDK Corporation

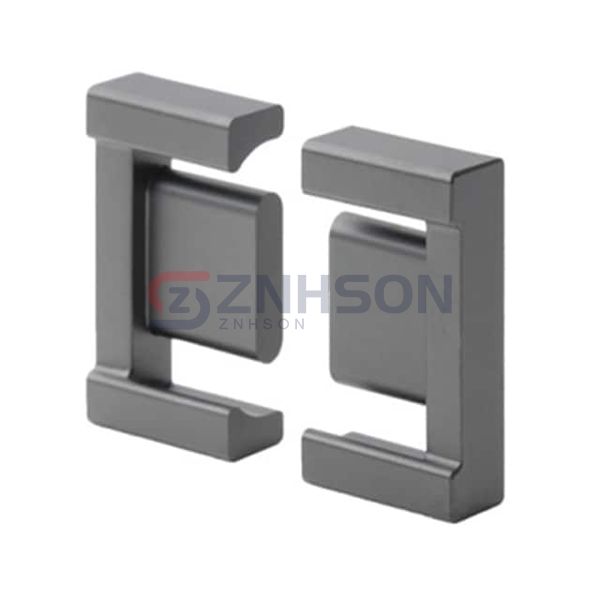

FERRITE CORE EPC 1.57UH 2PC SET
$2.10
Available to order
Reference Price (USD)
1+
$3.61000
10+
$3.09600
25+
$2.32200
50+
$2.25760
120+
$1.99950
360+
$1.87050
600+
$1.74150
1,080+
$1.61250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality TDK Corporation PC47EPC30-Z Ferrite Cores, essential components for efficient power conversion and noise suppression in electronic circuits. These cores are widely used in transformers, inductors, and various EMI suppression applications. Their excellent magnetic properties ensure optimal performance in high-frequency operations. Ideal for power supplies, telecommunications, and automotive electronics. Contact us today for a quote and let our experts assist you with your specific requirements!
Specifications
- Product Status: Active
- Core Type: EPC
- Supplier Device Package: EPC 30
- Material: PC47
- Diameter: -
- Inductance Factor (Al): 1.57 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 1.35
- Effective Length (le) mm: 75.3
- Effective Area (Ae) mm²: 55.6
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 4190
- Finish: Uncoated
- Height: 0.689" (17.50mm)
- Length: 1.185" (30.10mm)
- Width: 0.315" (8.00mm)
