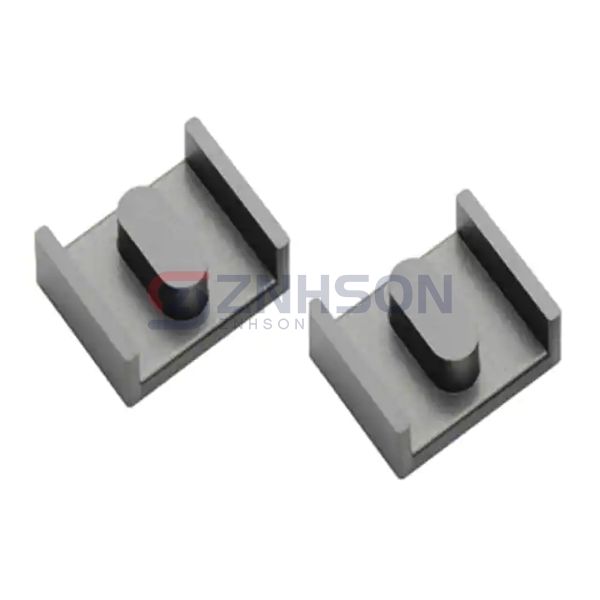

PC95EL22X8-Z
TDK Corporation
TDK Corporation
FERRITE CORE EL 6.54UH 2PC SET
$2.50
Available to order
Reference Price (USD)
1+
$2.38000
10+
$2.05000
25+
$1.55800
50+
$1.47600
100+
$1.31200
288+
$1.23000
576+
$1.14800
1,152+
$1.05370
5,184+
$1.02500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit efficiency with TDK Corporation PC95EL22X8-Z Ferrite Cores, engineered for high-frequency applications and minimal energy loss. These cores are indispensable in power inductors, common-mode chokes, and broadband transformers. Their robust construction ensures durability and consistent performance. Suitable for renewable energy systems, automotive electronics, and more. Don't compromise on quality reach out to our sales team for personalized solutions and competitive pricing!
Specifications
- Product Status: Active
- Core Type: EL
- Supplier Device Package: EL 22 x 8
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 6.54 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.41
- Effective Length (le) mm: 66.2
- Effective Area (Ae) mm²: 27.3
- Minimum Core Cross Section (Amin) mm²: 64.2
- Effective Magnetic Volume (Ve) mm³: 1810
- Finish: Uncoated
- Height: 0.158" (4.02mm)
- Length: 0.866" (22.00mm)
- Width: 0.693" (17.60mm)
Related Products
EPCOS - TDK Electronics
B66481G0000X608
Fair-Rite Products Corp.
5977001401
EPCOS - TDK Electronics
B64290L0719X035
EPCOS - TDK Electronics
B65661D0000Y038
Fair-Rite Products Corp.
5977001021
EPCOS - TDK Electronics
B66371Q0100K187
Ferroxcube
TX16/9.6/6.3-3E65
EPCOS - TDK Electronics
B65981Q0400K097
Fair-Rite Products Corp.

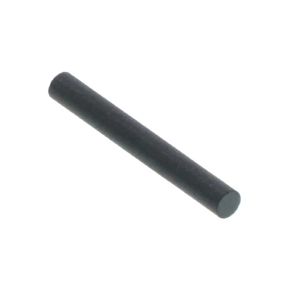

3067990841
