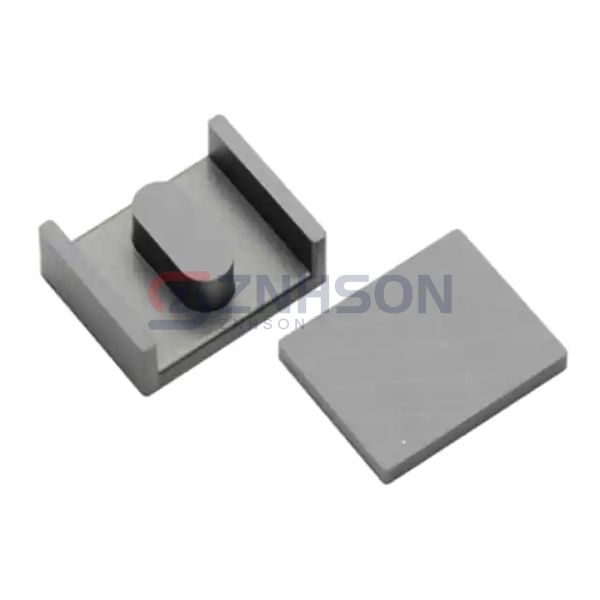

PC95ELT13X4.4-Z
TDK Corporation
TDK Corporation
FERRITE CORE ELT 3.16UH 1SET
$1.38
Available to order
Reference Price (USD)
1+
$1.38000
10+
$1.24200
25+
$0.92000
50+
$0.87400
100+
$0.78200
250+
$0.73600
540+
$0.69000
1,080+
$0.59800
5,400+
$0.57500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with TDK Corporation PC95ELT13X4.4-Z Ferrite Cores, designed to deliver superior magnetic performance and durability. These cores are widely used in power conversion, signal processing, and noise filtering applications. Their high-frequency capabilities and thermal resilience make them ideal for advanced electronics. Whether for IoT devices or automotive applications, our Ferrite Cores stand out. Request a consultation with our experts to find the best solution for your needs!
Specifications
- Product Status: Active
- Core Type: ELH, PLT
- Supplier Device Package: ELT 13 x 4.4
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 3.16 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.67
- Effective Length (le) mm: 23.1
- Effective Area (Ae) mm²: 15.4
- Minimum Core Cross Section (Amin) mm²: 22.4
- Effective Magnetic Volume (Ve) mm³: 357
- Finish: Uncoated
- Height: 0.125" (3.18mm)
- Length: 0.512" (13.00mm)
- Width: 0.409" (10.40mm)
