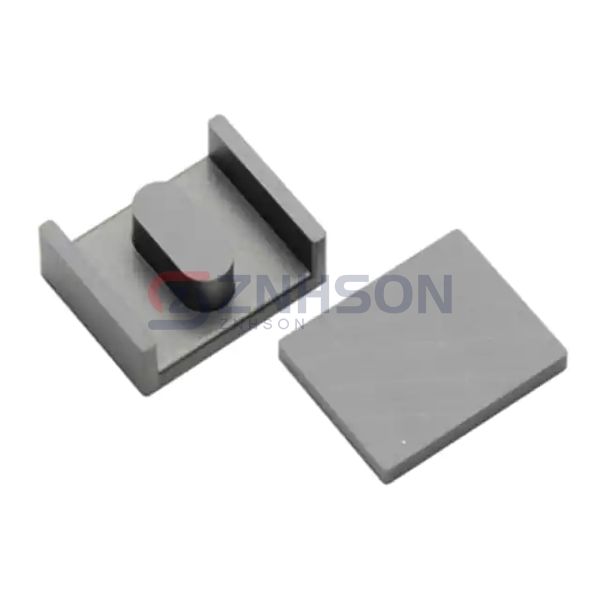

PC95ELT22X8-Z
TDK Corporation
TDK Corporation
FERRITE CORE ELT 6.54UH 1SET
$3.70
Available to order
Reference Price (USD)
1+
$3.53000
10+
$3.02400
25+
$2.26800
50+
$2.20500
100+
$1.95300
256+
$1.82699
512+
$1.70100
1,024+
$1.57500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality TDK Corporation PC95ELT22X8-Z Ferrite Cores, essential components for efficient power conversion and noise suppression in electronic circuits. These cores are widely used in transformers, inductors, and various EMI suppression applications. Their excellent magnetic properties ensure optimal performance in high-frequency operations. Ideal for power supplies, telecommunications, and automotive electronics. Contact us today for a quote and let our experts assist you with your specific requirements!
Specifications
- Product Status: Active
- Core Type: ELH, PLT
- Supplier Device Package: ELT 22 x 8
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 6.54 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.41
- Effective Length (le) mm: 66.2
- Effective Area (Ae) mm²: 27.3
- Minimum Core Cross Section (Amin) mm²: 64.2
- Effective Magnetic Volume (Ve) mm³: 1810
- Finish: Uncoated
- Height: 0.237" (6.02mm)
- Length: 0.866" (22.00mm)
- Width: 0.693" (17.60mm)
