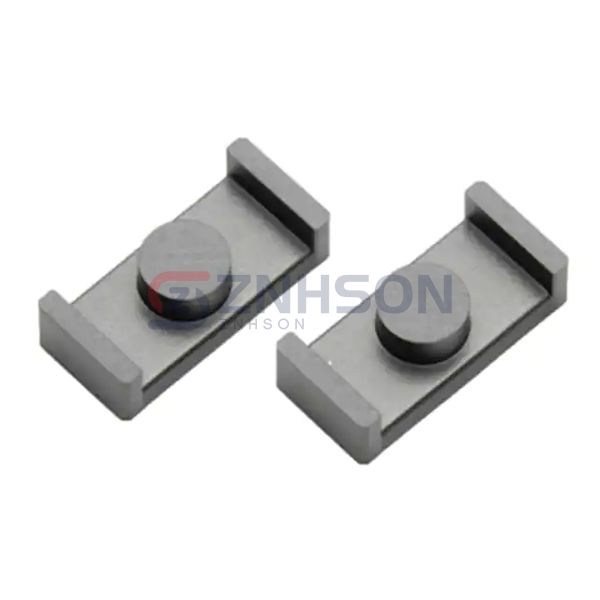

PC95ER9.5/5-Z
TDK Corporation
TDK Corporation
FERRITE CORE ER 1.19UH 2PC SET
$0.80
Available to order
Reference Price (USD)
1+
$0.76000
10+
$0.64400
25+
$0.55200
50+
$0.49460
100+
$0.43700
250+
$0.39100
900+
$0.36800
1,800+
$0.31050
5,400+
$0.28750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve optimal power management with TDK Corporation PC95ER9.5/5-Z Ferrite Cores, crafted for high-performance energy conversion and filtering. These cores are essential in designing efficient power supplies, RF devices, and noise suppression circuits. With excellent thermal stability and low core loss, they are suitable for harsh operating conditions. Trusted by engineers worldwide for critical applications. Reach out to our team for expert advice and customized solutions!
Specifications
- Product Status: Active
- Core Type: ER
- Supplier Device Package: ER 9.5 x 5
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 1.19 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 1.67
- Effective Length (le) mm: 8.47
- Effective Area (Ae) mm²: 14.2
- Minimum Core Cross Section (Amin) mm²: 7.6
- Effective Magnetic Volume (Ve) mm³: 120
- Finish: Uncoated
- Height: 0.098" (2.50mm)
- Length: 0.374" (9.50mm)
- Width: 0.197" (5.00mm)
