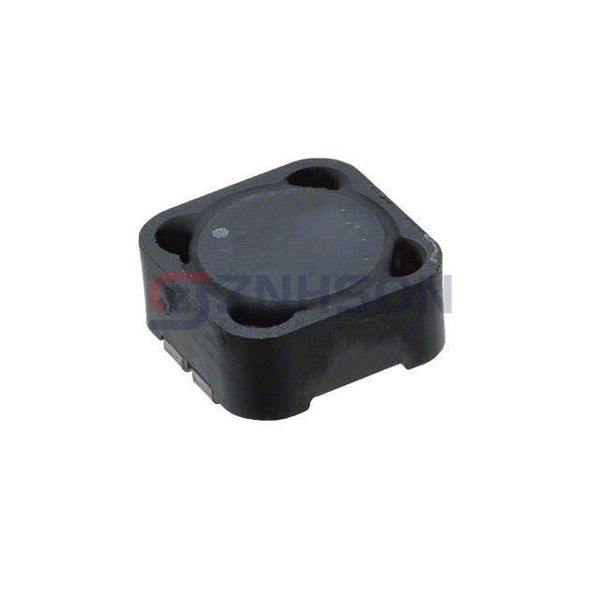

PF0552.103NL
Pulse Electronics Power
Pulse Electronics Power
INDUCT ARRAY 2 COIL 9.7UH SMD
$2.32
Available to order
Reference Price (USD)
1+
$2.32000
500+
$2.2968
1000+
$2.2736
1500+
$2.2504
2000+
$2.2272
2500+
$2.204
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PF0552.103NL Pulse Electronics Power Inductors, Coils, and Chokes are designed to excel in Arrays and Signal Transformers applications. Offering high efficiency, compact size, and robust performance, they are ideal for portable electronics and power management systems. Don t miss out get a quote today and see why leading engineers trust our products!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 9.7 µH
- Inductance - Connected In Series: 39 µH
- Tolerance: ±20%
- Current Rating - Parallel: 6 A
- Current Rating - Series: 3 A
- Current Saturation - Parallel: 7.2 A
- Current Saturation - Series: 3.6 A
- DC Resistance (DCR) - Parallel: 19mOhm Max
- DC Resistance (DCR) - Series: 73mOhm Max
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height: 0.236" (6.00mm)
