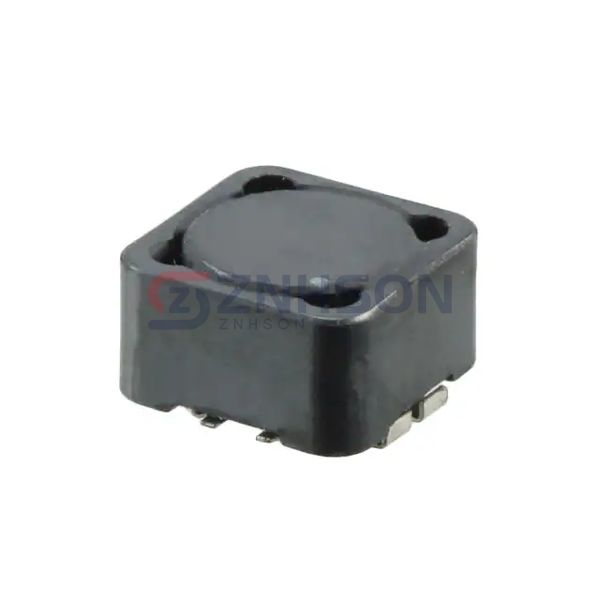

PF0553.222NL
Pulse Electronics Power
Pulse Electronics Power
INDUCT ARRAY 2 COIL 2UH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality PF0553.222NL Pulse Electronics Power Inductors, Coils, and Chokes designed for optimal performance in various electronic applications. Our Arrays and Signal Transformers offer exceptional efficiency, durability, and precision, making them ideal for telecommunications, automotive, and industrial uses. With advanced features like low resistance and high-frequency stability, these components ensure reliable operation in demanding environments. Interested in learning more? Contact us today for a customized quote and technical support!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 2 µH
- Inductance - Connected In Series: 8.1 µH
- Tolerance: ±20%
- Current Rating - Parallel: 13 A
- Current Rating - Series: 6.2 A
- Current Saturation - Parallel: 25 A
- Current Saturation - Series: 13 A
- DC Resistance (DCR) - Parallel: 3.7mOhm Max
- DC Resistance (DCR) - Series: 15mOhm Max
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height: 0.343" (8.71mm)
